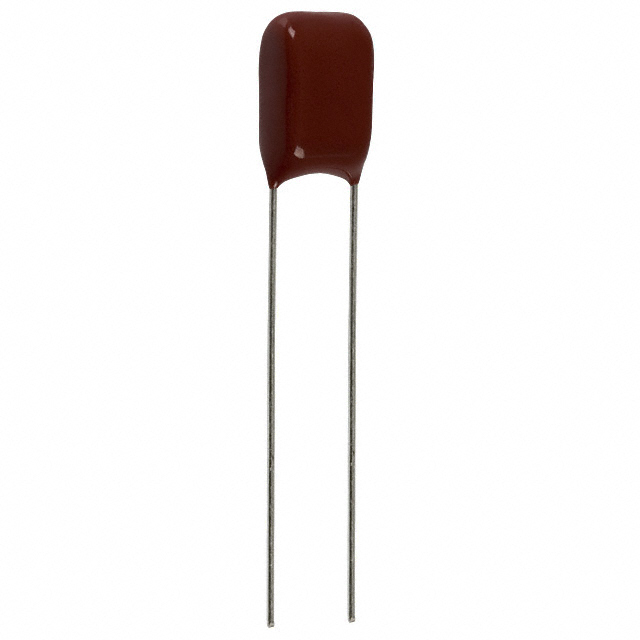

ECQ-E2154 Series

Manufacturer: Panasonic Electronic Components

Catalog

GENERAL PURPOSE FILM CAPACITOR, METALLIZED PET, RADIAL BOX - 2 PIN, 0.15 ΜF, ± 5%, 125 V, 250 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Lead Spacing	Lead Spacing	Capacitance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Dielectric Material	Applications	Voltage Rating - DC	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Electronic Components ECQ-E2154JB	0.248 in	7.9 mm	6.3 mm	0.311 in	Radial	0.197 "	5 mm	0.15 ÁF	5 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole	12.2 mm	0.48 in
Panasonic Electronic Components ECQ-E2154JFB	0.236 "	10.3 mm	6 mm	0.406 in	Radial	0.295 in	7.5 mm	0.15 ÁF	5 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole			15.8 mm	0.622 "
Panasonic Electronic Components ECQ-E2154RKF	0.236 "	10.3 mm	6 mm	0.406 in	Radial	0.295 in	7.5 mm	0.15 ÁF	10 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole			15.8 mm	0.622 "
Panasonic Electronic Components ECQ-E2154JF	0.236 "	10.3 mm	6 mm	0.406 in	Radial	0.295 in	7.5 mm	0.15 ÁF	5 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole					11.8 mm	0.465 in
Panasonic Electronic Components ECQ-E2154KB	0.248 in	7.9 mm	6.3 mm	0.311 in	Radial	0.197 "	5 mm	0.15 ÁF	10 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole	12.2 mm	0.48 in
Panasonic Electronic Components ECQ-E2154JBB	0.248 in	7.9 mm	6.3 mm	0.311 in	Radial	0.197 "	5 mm	0.15 ÁF	5 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole		0.638 in				16.2 mm
Panasonic Electronic Components ECQ-E2154RJF	0.236 "	10.3 mm	6 mm	0.406 in	Radial	0.295 in	7.5 mm	0.15 ÁF	5 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole			15.8 mm	0.622 "
Panasonic Electronic Components ECQ-E2154KFW	0.236 "	10.3 mm	6 mm	0.406 in	Radial	0.295 in	7.5 mm	0.15 ÁF	10 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole			15.8 mm	0.622 "
Panasonic Electronic Components ECQ-E2154KF3	0.236 "	10.3 mm	6 mm	0.406 in	Radial	0.197 "	5 mm	0.15 ÁF	10 %	-40 C	105 ░C	PC Pins	Polyester Metallized	General Purpose	250 V	Through Hole			15.8 mm	0.622 "
