284061 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 50POS 5.08MM
| Part | Number of Positions | Color | Number of Levels | Voltage - UL | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Header Orientation | Current - UL | Material Flammability Rating | Contact Material | Pitch [x] | Pitch [x] | Type | Insulation Height [z] | Insulation Height [z] | Contact Mating Finish | Contact Tail Length | Contact Tail Length | Termination Style | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 50 | Green | 2 | 300 V | Through Hole | -40 °C | 110 °C | Interlocking (Side) | 90° Right Angle | 12 A | UL94 V-0 | Copper Alloy | 0.2 in | 5.08 mm | Header Male Pins Shrouded (4 Side) | 0.902 " | 22.9 mm | Tin | 3.5 mm | 0.138 in | Solder | 25 |

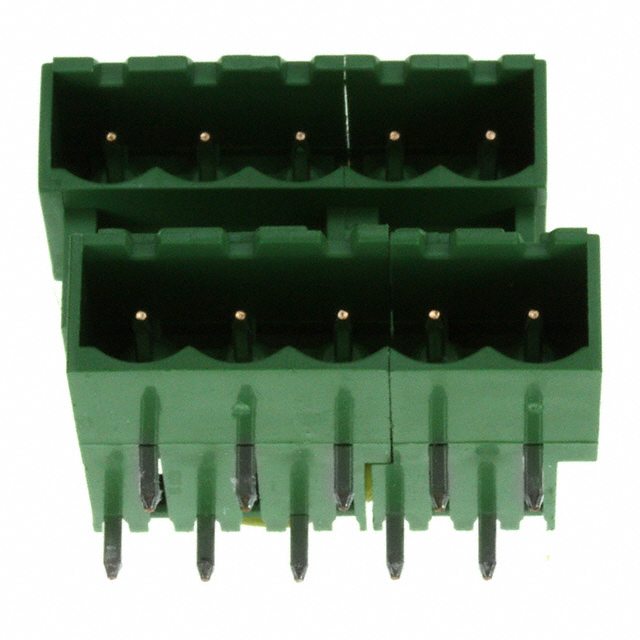

 TE Connectivity Raychem Cable Protection | 10 | Green | 2 | 300 V | Through Hole | -40 °C | 110 °C | Interlocking (Side) | 90° Right Angle | 12 A | UL94 V-0 | Copper Alloy | 0.2 in | 5.08 mm | Header Male Pins Shrouded (4 Side) | 0.902 " | 22.9 mm | Tin | 3.5 mm | 0.138 in | Solder | 5 |
TE Connectivity Raychem Cable Protection | Green | 2 | 300 V | Through Hole | -40 °C | 110 °C | Interlocking (Side) | 90° Right Angle | 12 A | UL94 V-0 | Copper Alloy | 0.2 in | 5.08 mm | Header Male Pins Shrouded (4 Side) | 0.902 " | 22.9 mm | Tin | 3.5 mm | 0.138 in | Solder | 16 | |

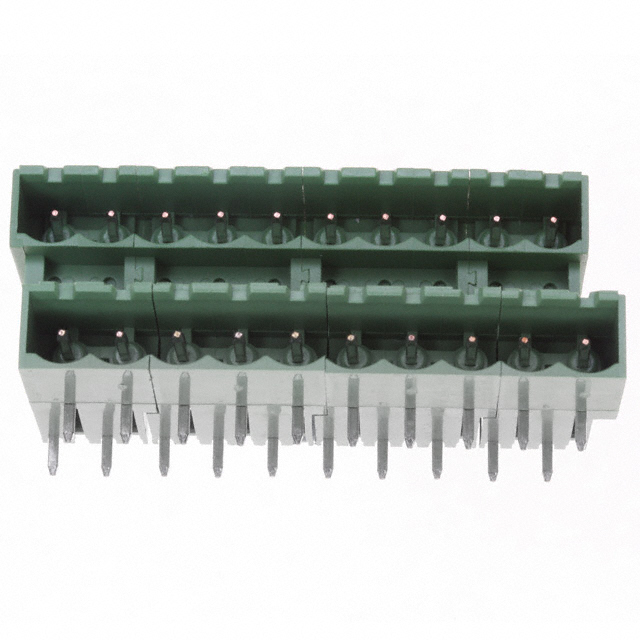

 TE Connectivity Raychem Cable Protection | 20 | Green | 2 | 300 V | Through Hole | -40 °C | 110 °C | Interlocking (Side) | 90° Right Angle | 12 A | UL94 V-0 | Copper Alloy | 0.2 in | 5.08 mm | Header Male Pins Shrouded (4 Side) | 0.902 " | 22.9 mm | Tin | 3.5 mm | 0.138 in | Solder | 10 |
