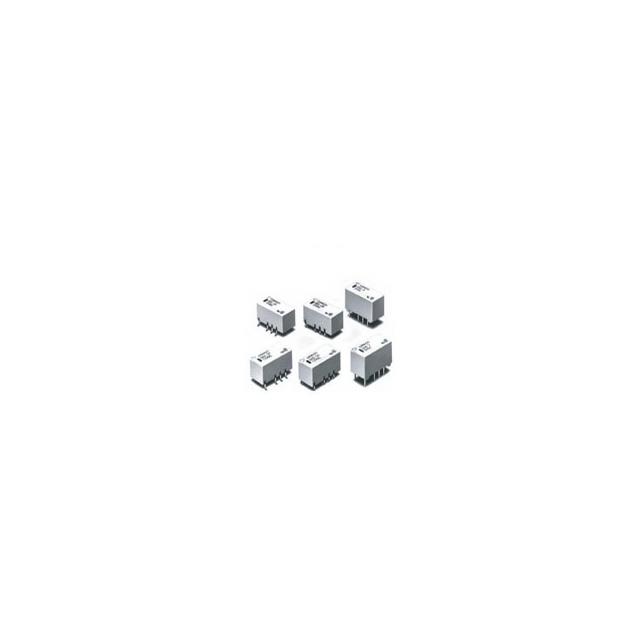

G6SU-2 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY TELECOM DPDT 2A 4.5V
| Part | Coil Resistance | Coil Voltage | Must Operate Voltage | Release Time | Operate Time | Contact Rating (Current) | Switching Voltage | Contact Material | Coil Type | Coil Current | Mounting Type | Termination Style | Contact Form | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 203 Ohms | 4.5 VDC | 3.38 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 22.2 mA | Through Hole | PC Pin | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | ||
 Omron Electronics Inc-EMC Div | 90 Ohms | 2.25 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 33.3 mA | Surface Mount | Gull Wing | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA | |
 Omron Electronics Inc-EMC Div | 250 Ohms | 5 VDC | 3.75 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 20 mA | Through Hole | PC Pin | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
 Omron Electronics Inc-EMC Div | 3.84 kOhms | 24 VDC | 18 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 6.3 mA | Surface Mount | J Lead | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
Omron Electronics Inc-EMC Div | 3.84 kOhms | 24 VDC | 18 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 6.3 mA | Surface Mount | Gull Wing | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
Omron Electronics Inc-EMC Div | 250 Ohms | 5 VDC | 3.75 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 20 mA | Surface Mount | Gull Wing | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
Omron Electronics Inc-EMC Div | 3.84 kOhms | 24 VDC | 18 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 6.3 mA | Through Hole | PC Pin | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
Omron Electronics Inc-EMC Div | 203 Ohms | 4.5 VDC | 3.38 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 22.2 mA | Through Hole | PC Pin | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
Omron Electronics Inc-EMC Div | 1440 Ohms | 12 VDC | 9 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 8.3 mA | Surface Mount | J Lead | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
Omron Electronics Inc-EMC Div | 203 Ohms | 4.5 VDC | 3.38 VDC | 4 ms | 4 ms | 2 A | 220 VDC 250 VAC | Gold (Au) Silver (Ag) | Latching Single Coil | 22.2 mA | Surface Mount | Gull Wing | DPDT (2 Form C) | Telecom | 85 °C | -40 °C | CSA UR | 440 W 500 VA |
