R12359 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

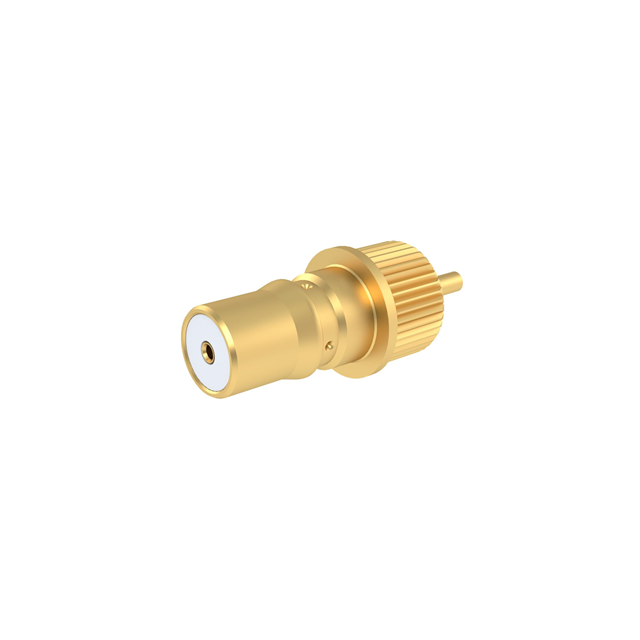

QMA / STRAIGHT PRESS MOUNT RECEP
| Part | Center Contact Plating | Voltage Rating | Insertion Loss | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Center Contact Material | Housing Color | Contact Termination | Impedance | Frequency - Max [Max] | Fastening Type | Number of Ports | Ingress Protection | Connector Type | Shield Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 V | 0.25 dB | Gold | -40 C | 105 ░C | Brass | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Gold | Solder | 50 Ohms | 6000 MHz | Snap-On | 1 | IP68 - Dust Tight Waterproof | Receptacle Female Socket | Solder | Panel Mount Through Hole |
