333-038 Series
Manufacturer: EDAC Inc.
Beta
⌘K

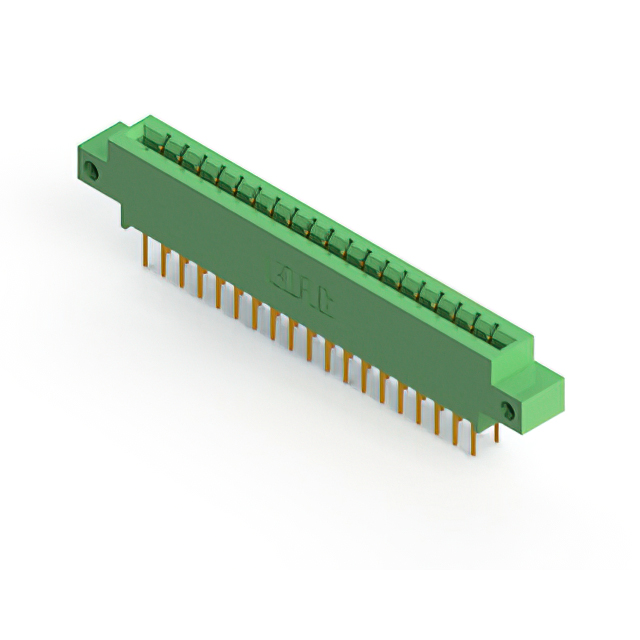

CONN EDGE DUAL FMALE 38POS 0.156
| Part | Material - Insulation | Termination Rows [custom] | Contact Material | Termination | Contact Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Gender | Color | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Read Out | Number of Positions/Bay/Row | Mounting Type | Number of Positions | Termination Rows | Number of Rows | Number of Positions/Bay/Row [custom] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | Dual | 19 | Through Hole | 38 | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 3.96 mm | 0.156 in | 2.95 mm | 0.116 " | Single | Through Hole | 38 | 1 | 1 | 38 | Floating Bobbin Top Mount Opening | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Wire Wrap | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | Dual | 19 | Through Hole | 38 | Side Mount Opening Unthreaded | ||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Single | Right Angle Through Hole | 38 | 1 | 1 | 38 | M3 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Single | Through Hole | 38 | 1 | 1 | 38 | Flush Mount M3 Threaded Insert Top Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Wire Wrap | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Single | Through Hole | 38 | 1 | 1 | 38 | Flush Mount M3 Threaded Insert Top Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Solder | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 3.96 mm | 0.156 in | Single | Through Hole | 38 | 1 | 1 | 38 | 4-40 Threaded Insert Top Mount Opening | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | Solder | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Single Edge | 0.25 Ám | 10 Áin | -40 C | 105 ░C | 3.96 mm | 0.156 in | 3.96 mm | 0.156 " | Single | Through Hole | 38 | 1 | 1 | 38 | |||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Wire Wrap | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | 3.25 mm | 0.128 " | Dual | 19 | Through Hole | 38 | Side Mount Opening Unthreaded | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Copper Alloy | Solder | Cantilever | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Green | Non Specified - Dual Edge | 0.25 Ám | 10 Áin | 2 | -40 C | 105 ░C | 3.96 mm | 0.156 in | 3.96 mm | 0.156 " | Dual | 19 | Board Edge Straddle Mount | 38 | Card Extender |
