ALCOSWITCH SAJ Series Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

MINSA SW HLV 0.30N 0.5A AC NC SH-L-BND

Part	Actuator Type	Release Force	Differential Travel	Differential Travel	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Overtravel [custom]	Overtravel [custom]	Switch Function	Operating Position	Operating Position	Circuit	Mechanical Life	Operating Force	Pretravel	Pretravel	Voltage Rating - DC	Mounting Type	Operating Position [x]	Operating Position [x]	Overtravel	Overtravel	Voltage Rating - AC	Ingress Protection

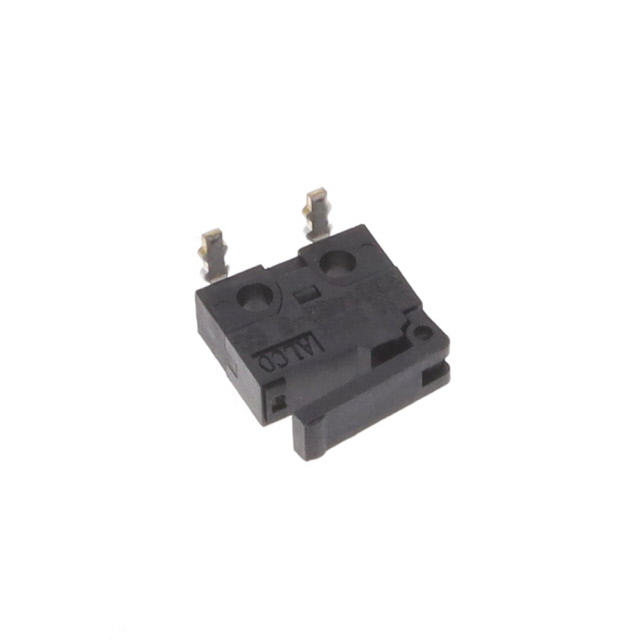

TE Connectivity AMP Connectors SAJ405XHL0N30SNCSLQ	Lever Straight	3 gf	0.028 in	0.7 mm	50000 Cycles	85 °C	-40 C	500 mA	PC Pin	0.011 "	0.3 mm	On-Mom	6.7 mm	0.264 in	SPST-NC	100000 Cycles	50 gf	0.071 "	1.8 mm	30 V	Right Angle Through Hole

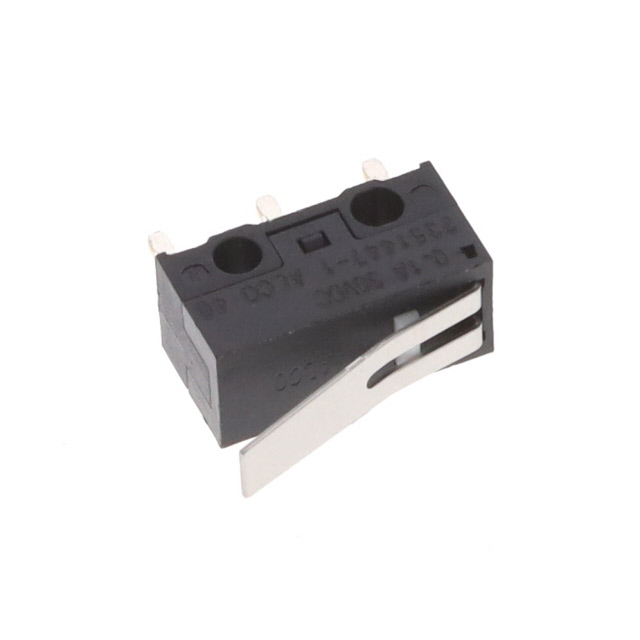

TE Connectivity AMP Connectors SAJ101XBL0N74SDTPTQ	Lever Straight	2 gf	0.02 in	0.5 mm	30000 Cycles	75 ░C	-25 °C	100 mA	PC Pin	0.022 "	0.55 mm	On-Mom			SPDT	1000000 Cycles	26 gf	0.087 in	2.2 mm	30 V	Through Hole	9.6 mm	0.378 in

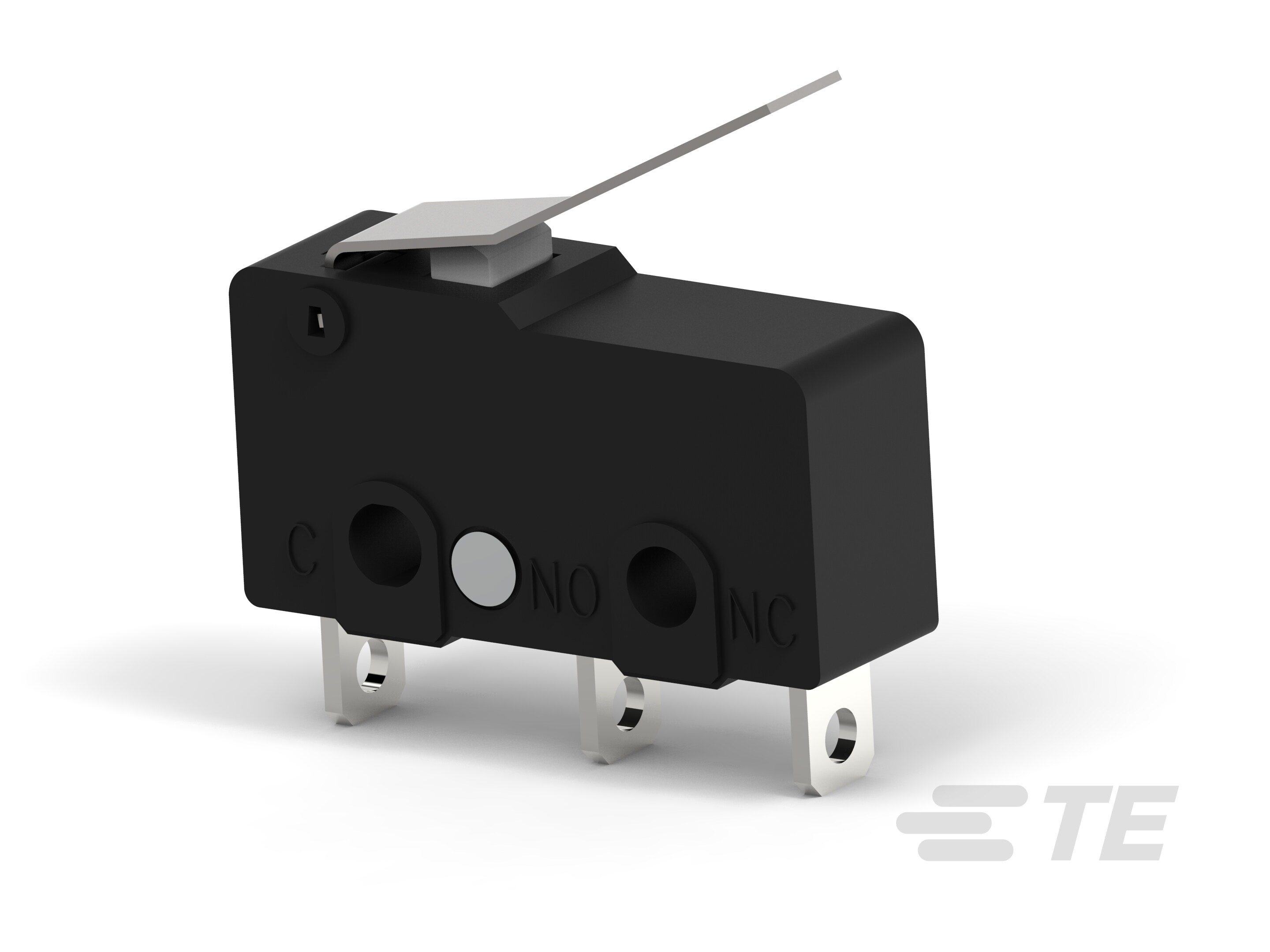

TE Connectivity AMP Connectors SAJ25YXUL1147SDTSEQ	Lever Straight	60 gf	0.031 in	0.8 mm	10000 Cycles	75 ░C	-40 C	3 A 5 A	Solder Lug			On-Mom	12.5 mm	0.492 "	SPDT	10000000 Cycles	50 gf	0.138 in	3.5 mm	30 V	Chassis Mount			1.2 mm	0.047 "	125 V
TE Connectivity AMP Connectors SAJ101XBL0N74SNOPTQ	Lever Straight	2 gf	0.02 in	0.5 mm	30000 Cycles	75 ░C	-25 °C	100 mA	PC Pin	0.022 "	0.55 mm	Off-Mom			SPST-NO	1000000 Cycles	26 gf	0.087 in	2.2 mm	30 V	Through Hole	9.6 mm	0.378 in
TE Connectivity AMP Connectors SAJ405XHL0N30SNOSRQ	Lever Straight	3 gf	0.028 in	0.7 mm	50000 Cycles	85 °C	-40 C	500 mA	PC Pin	0.011 "	0.3 mm	Off-Mom	6.7 mm	0.264 in	SPST-NO	100000 Cycles	50 gf	0.071 "	1.8 mm	30 V	Right Angle Through Hole
TE Connectivity AMP Connectors SAJ35XXPP0N49SDTFAQ	Round (Pin Plunger)		0.016 in	0.4 mm	10000 Cycles	85 °C	-40 C	5 A	Quick Connect	0.039 "	1 mm	On-Mom	14.7 mm	0.579 in	SPDT	5000000 Cycles	50 gf	0.047 in	1.2 mm		Chassis Mount					125 V
TE Connectivity AMP Connectors SAJ405XHL0N30SNOLLQ	Lever Straight	3 gf	0.028 in	0.7 mm	50000 Cycles	85 °C	-40 C	500 mA	PC Pin	0.011 "	0.3 mm	Off-Mom	6.7 mm	0.264 in	SPST-NO	100000 Cycles	50 gf	0.071 "	1.8 mm	30 V	Right Angle Through Hole

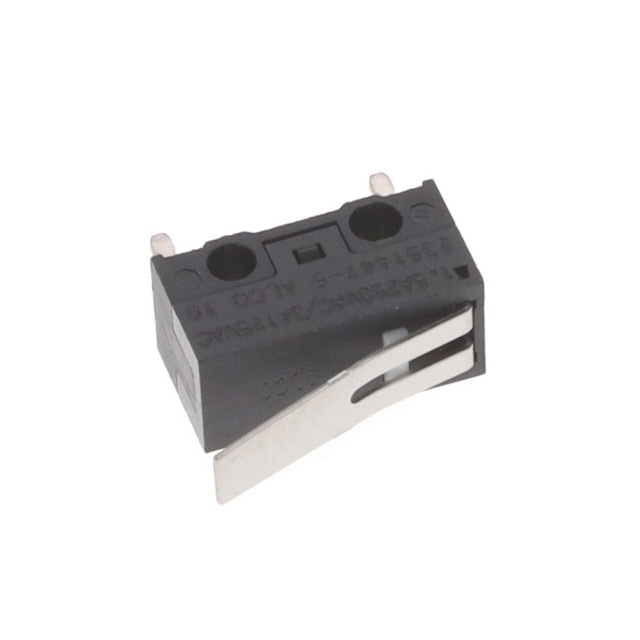

TE Connectivity AMP Connectors SAJ13XXBL0N88SNCPTQ	Lever Straight	2 gf	0.02 in	0.5 mm	6000 Cycles	75 ░C	-25 °C	3 A	PC Pin	0.022 "	0.55 mm	On-Mom			SPST-NC	500000 Cycles	26 gf	0.087 in	2.2 mm		Through Hole	9.6 mm	0.378 in			125 V

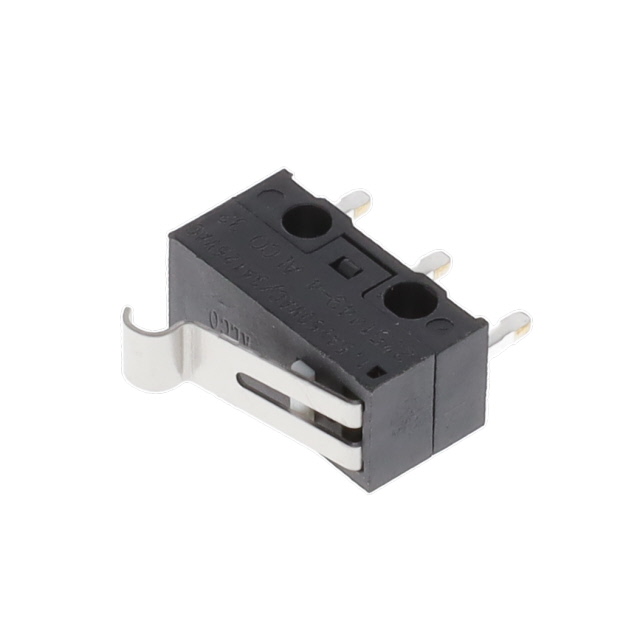

TE Connectivity AMP Connectors SAJ13XXRHLN88SDTPTQ	Lever Simulated Roller	2 gf	0.018 in	0.45 mm	6000 Cycles	75 ░C	-25 °C	3 A	PC Pin	0.02 "	0.5 mm	On-Mom	10.2 mm	0.4 in	SPDT	500000 Cycles	40 gf	0.15 in	3.8 mm		Through Hole					125 V

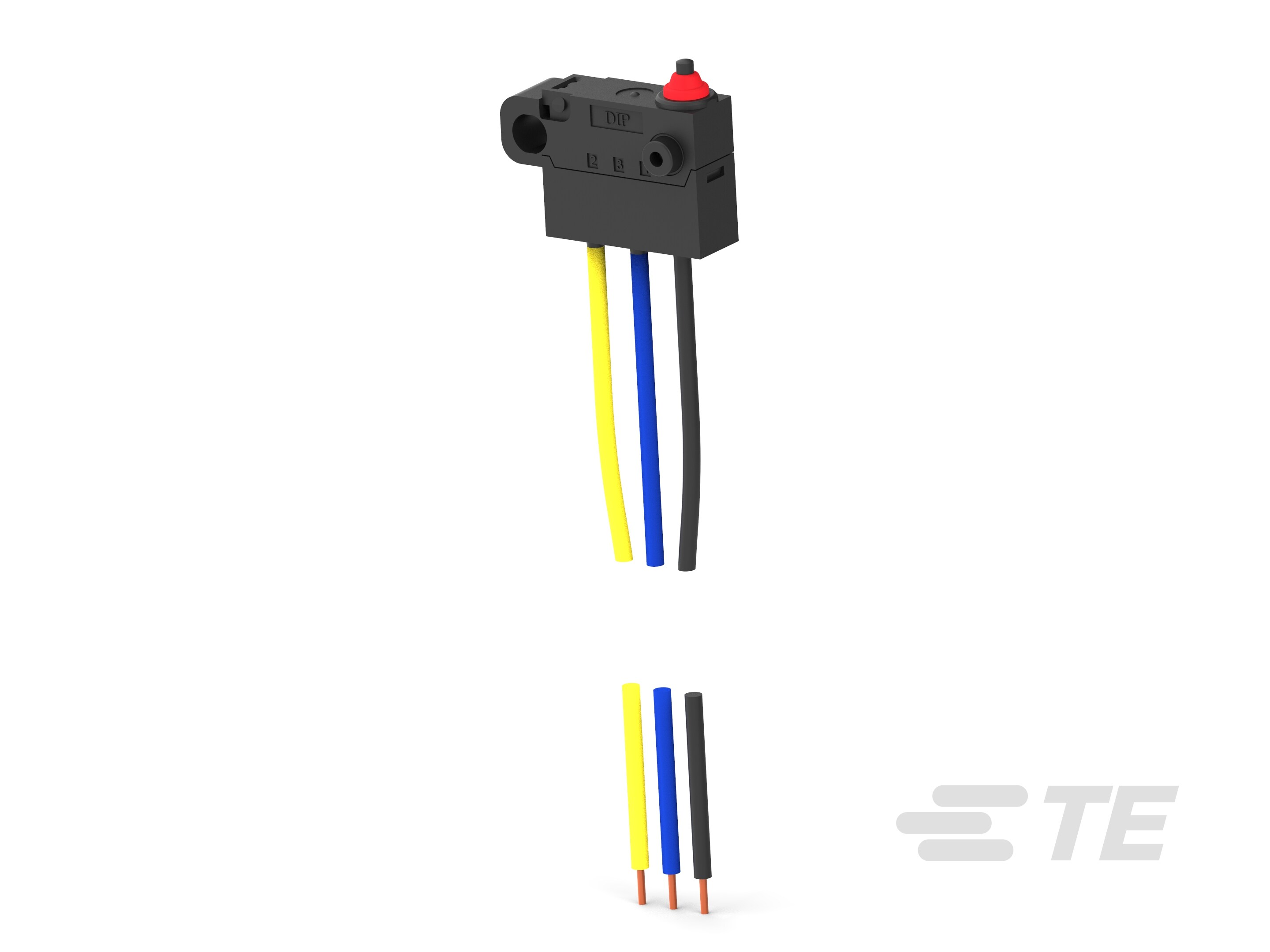

TE Connectivity AMP Connectors SAJ501YPP0STDSDTFLQ	Round (Pin Plunger)	13 gf	0.008 in	0.2 mm	100000 Cycles	85 °C	-40 C	100 mA	Wire Leads	0.031 "	0.79 mm	On-Mom	6.4 mm	0.25 in	SPDT	500000 Cycles	130 gf	0.037 "	0.94 mm	48 V	Chassis Mount					125 V	IP67 - Dust Tight Waterproof
