SI-B9 Series

Manufacturer: Samsung Semiconductor, Inc.

Catalog

LED MOD WARM WHT LNR STRIP 3000K

Part	Luminous Flux @ Current/Temperature	Configuration	CRI (Color Rendering Index)	Viewing Angle	Color	CCT (K)	Current - Test	Temperature - Test	Lens Type	Type	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Height [z]	Current - Max [Max]	CCT (K)
Samsung Semiconductor, Inc. SI-B9V041500WW	650 lm	Linear Light Strip	90	160 °	Warm White	3000 K	110 mA	40 °C	Flat	LED Module	145 lm/W	13 mm	500 mm	40.8 V	7 mm	300 mA
Samsung Semiconductor, Inc. SI-B9T113280WW	1163 lm	Linear Light Strip	90	115 °	Neutral White	4000 K	450 mA	55 °C	Flat	LED Module	103 lm/W	18 mm	275 mm	25 V	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9V081B00WW	1300 lm	Linear Light Strip	90	160 °	Warm White	3000 K	220 mA	40 °C	Flat	LED Module	145 lm/W	13 mm	1100 mm	40.8 V	7 mm	600 mA
Samsung Semiconductor, Inc. SI-B9W111560WW	1020 lm	Linear Light Strip	90	115 °	Warm White	2700 K	450 mA	50 °C	Flat	LED Module	92 lm/W	18 mm	560 mm	24.7 V	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9U111560WW	1120 lm	Linear Light Strip	90	115 °	Warm White	3500 K	450 mA	50 °C	Flat	LED Module	101 lm/W	18 mm	560 mm	24.7 V	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9R081B00WW	1400 lm	Linear Light Strip	90	160 °	Cool White	5000 K	220 mA	40 °C	Flat	LED Module	156 lm/W	13 mm	1100 mm	40.8 V	7 mm	600 mA
Samsung Semiconductor, Inc. SI-B9U081B00WW	1340 lm	Linear Light Strip	90	160 °	Warm White	3500 K	220 mA	40 °C	Flat	LED Module	149 lm/W	13 mm	1100 mm	40.8 V	7 mm	600 mA

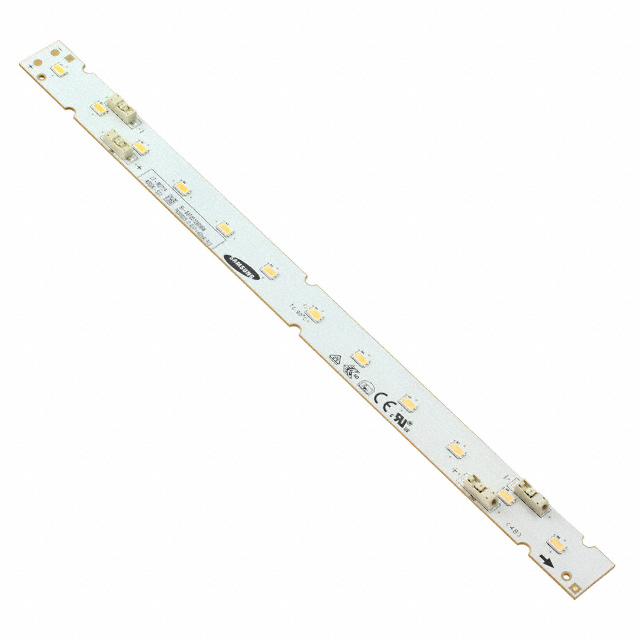

Samsung Semiconductor, Inc. SI-B9T051280WW	585 lm	Linear Light Strip	90	115 °	Neutral White	4000 K	450 mA	55 °C	Flat	LED Module	108 lm/W	18 mm	275 mm	12 V	5.8 mm	450 mA	3-Step MacAdam Ellipse
Samsung Semiconductor, Inc. SI-B9U041500WW	670 lm	Linear Light Strip	90	160 °	Warm White	3500 K	110 mA	40 °C	Flat	LED Module	149 lm/W	13 mm	500 mm	40.8 V	7 mm	300 mA
Samsung Semiconductor, Inc. SI-B9T041500WW	700 lm	Linear Light Strip	90	160 °	Neutral White	4000 K	110 mA	40 °C	Flat	LED Module	156 lm/W	13 mm	500 mm	40.8 V	7 mm	300 mA
