RM35 Series

Catalog

VOLTAGE MONITORING RELAY, ZELIO RM35UA SERIES, DPDT, 5 A, DIN RAIL, 250 V, SCREW

Part	Operating Temperature [Min]	Operating Temperature [Max]	Trip Range [Max]	Trip Range [Min]	Circuit	Mounting Type	Type	Trip Status	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Delay Time [Max]	Delay Time [Min]	Delay Time
SCHNEIDER ELECTRIC RM35UA13MW	-20 ░C	50 °C	600 V AC/DC	15 V DC	DPDT (2 Form C)	DIN Rail	Voltage Sensing AC/DC	Energized High/Low	Relay	24 VAC	240 VAC	30 Sec	0.3 Sec

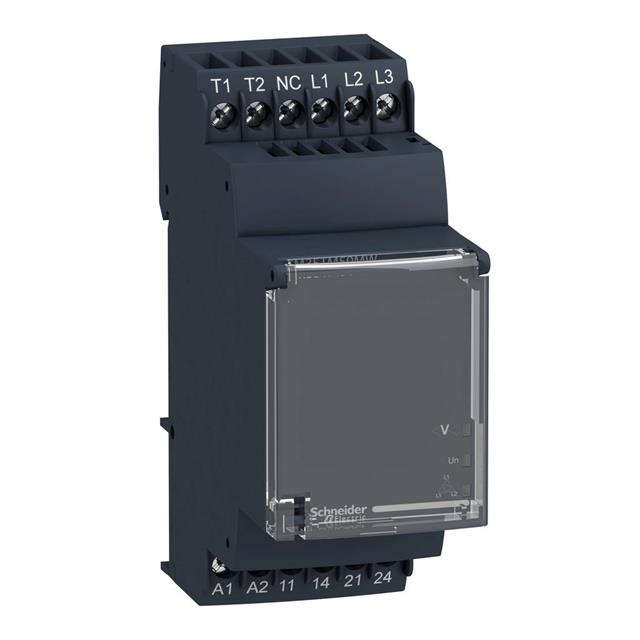

SCHNEIDER ELECTRIC RM35TM50MW	-20 ░C	50 °C	480 V AC	208 V AC	DPST-NO (2 Form A)	DIN Rail	Phase Loss Phase Sequence Temperature Monitoring Voltage Sensing AC/DC	Energized High/Low	Relay	20.4 VAC	264 VAC			0.3 Sec
SCHNEIDER ELECTRIC RM35JA32MW	-20 ░C	50 °C	15 A	0.15 A	DPDT (2 Form C)	DIN Rail	Current Sensing AC/DC	Energized High/Low	Relay	24 VAC	240 VAC	20 s	1 Sec
