BM08B-SU Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

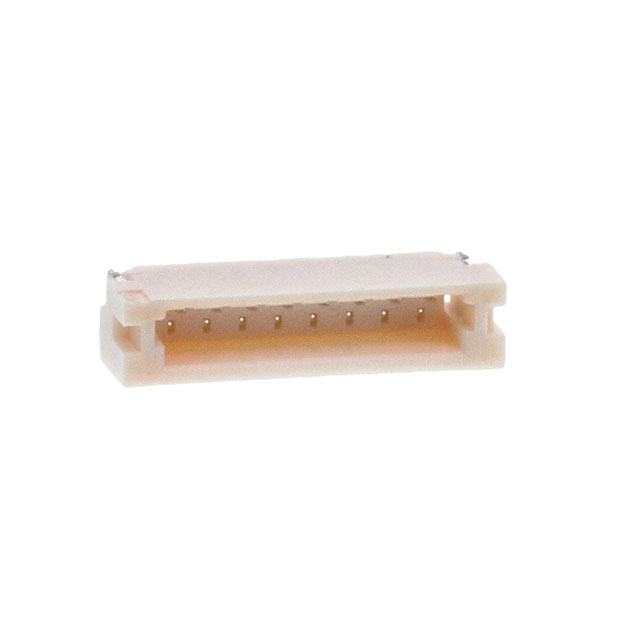

CONN HEADER SMD 8POS 0.8MM
| Part | Mated Stacking Heights | Contact Finish - Post | Contact Material | Insulation Color | Insulation Material | Pitch - Mating | Pitch - Mating | Mounting Type | Voltage Rating | Shrouding | Contact Shape | Termination | Contact Type | Features | Number of Positions Loaded | Number of Rows | Current Rating (Amps) | Style | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Fastening Type | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 3.95 mm | Tin | Copper Alloy | Natural | Nylon Polyamide (PA) | 0.8 mm | 0.031 in | Surface Mount | 30 VDC | Shrouded - 4 Wall | Rectangular | Solder | Outer Shroud Contact | Solder Retention | All | 1 | 0.2 A 0.5 A | Board to Cable/Wire | 0.106 in | 2.7 mm | 85 °C | -25 °C | UL94 V-0 | Push-Pull | Header | 8 |
