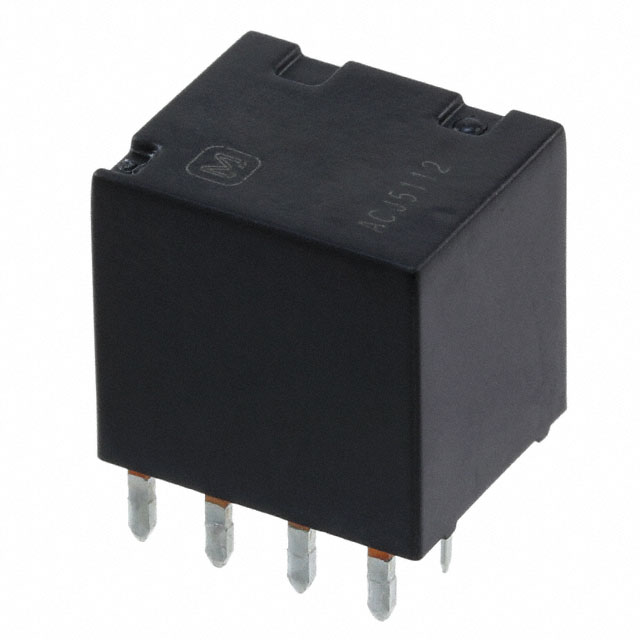

ACJ511 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
RELAY AUTOMOTIVE SPDTX2 20A 12V
| Part | Coil Resistance | Coil Power | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Contact Rating (Current) | Release Time | Termination Style | Operate Time | Contact Form | Switching Voltage | Mounting Type | Features | Coil Type | Must Release Voltage | Coil Current | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 180 Ohms | 800 mW | Silver Alloy Cadmium Free | 85 °C | -40 C | 6.5 VDC | 20 A | 10 ms | PC Pin | 10 ms | SPDT (1 Form C) x 2 | 14 VDC | Through Hole | Sealed - Fully | Non Latching | 0.8 VDC | 66.7 mA | 12 VDC |
