PTA.M1 Series
Manufacturer: LEMO
Beta
⌘K

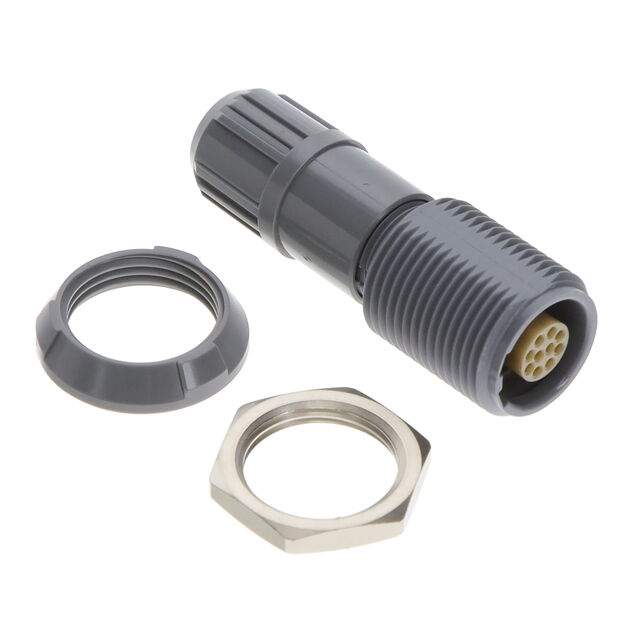

CONN RCPT FMALE 10P SOLDER CUP
| Part | Connector Type | Backshell Material, Plating | Contact Finish - Mating | Fastening Type | Ingress Protection | Applications | Shell Size - Insert | Shielding | Features | Shell Material | Mounting Type | Primary Material | Color | Number of Positions | Insert Material | Orientation | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LEMO | Receptacle Female Sockets | Polysulfone (PSU) | Gold | Detent Lock Push-Pull | IP50 - Dust Protected | Automotive Industrial Medical Testing Equipment & Measurement | M10 | Unshielded | Backshell | Polysulfone (PSU) | Free Hanging (In-Line) Panel Mount | Plastic | Gray | 10 | Polyetheretherketone (PEEK) | A | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | 3 A | 150 °C | -50 °C | Front and Rear Side Nut |
