XZFVG14 Series
Manufacturer: SunLED
Beta
⌘K

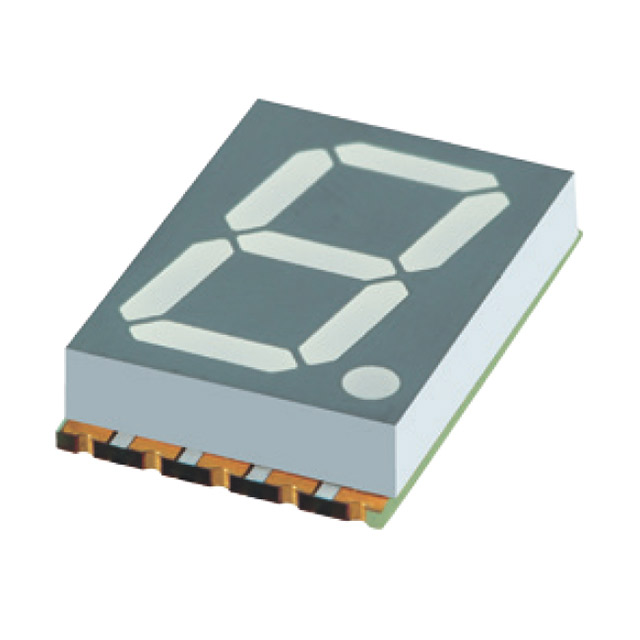

DISPLAY 7SEG 0.56" SGL GRN 10SMD
| Part | Number of Characters | Package / Case | Display Type | Power Dissipation (Max) [Max] | Digit/Alpha Size | Digit/Alpha Size | Common Pin | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Current - Test | Millicandela Rating | Color | Voltage - Forward (Vf) (Typ) | Size / Dimension [z] | Size / Dimension [y] | Number of Characters |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 1 | 10-SMD No Lead | 7-Segment | 75 mw | 0.56 in | 14.22 mm | Common Anode | 0.488 " | 12.4 mm | 19 mm | 3.75 mm | 0.148 in | 0.748 in | 10 mA | 25 mcd | Green | 2 V | |||
 SunLED | 1 | 10-SMD No Lead | 7-Segment | 75 mw | 0.56 in | 14.22 mm | Common Cathode | 0.488 " | 0.148 in 0.669 " | 10 mA | 5 mcd | Green | 2 V | 3.75 mm 17 mm | 12.4 mm | |||||

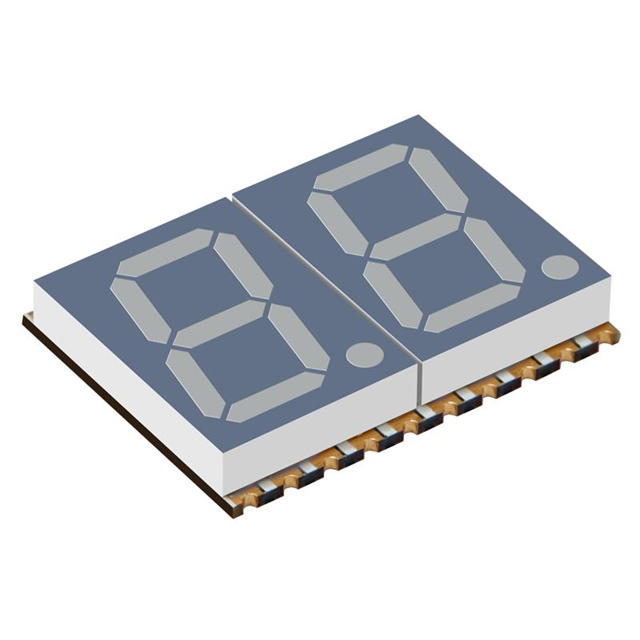

 SunLED | 20-SMD No Lead | 7-Segment | 75 mw | 0.56 in | 14.22 mm | Common Anode | 0.988 " | 17 mm | 0.148 in | 0.669 in | 10 mA | 5 mcd | Green | 2 V | 3.75 mm | 25.1 mm | 2 |
