N3372 Series

Catalog

PIN HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 60 CONTACTS, THROUGH HOLE

Part	Number of Rows [custom]	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Shrouding	Style	Contact Material	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]

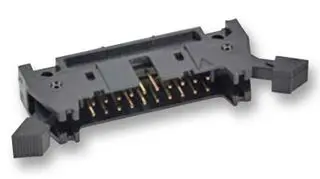

3M Electronic Specialty N3372-6303RB	2	1.75 A	Header	Gold	60	0.695 in	17.65 mm	Solder	-55 C	105 ░C	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.24 in	6.1 mm	Male Pin	3.94 mm	0.155 "	Latch Lock/Eject Hooks Long	All	0.1 in	2.54 mm	17.27 mm	0.68 in	UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Board to Board Cable	Copper Alloy	Square	0.76 Ám	30 Áin	Tin	Black	200 µin	5.08 µm
3M Electronic Specialty N3372-L303RB	2		Header Stackable (2)	Gold	60			Solder	-55 C	105 ░C	Right Angle Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.24 in	6.1 mm	Male Pin	3.94 mm	0.155 "	Latch Lock/Eject Hooks Long	All	0.1 in	2.54 mm			UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Board to Board Cable	Copper Alloy	Square	0.76 Ám	30 Áin	Tin	Black	200 µin	5.08 µm	16.76 mm	0.66 in
3M Electronic Specialty N3372-L302RB	2		Header Stackable (2)	Gold	60			Solder	-55 C	105 ░C	Right Angle Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.24 in	6.1 mm	Male Pin			Latch Lock/Eject Hooks Long	All	0.1 in	2.54 mm			UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Board to Board Cable	Copper Alloy	Square	0.76 Ám	30 Áin	Tin	Black	200 µin	5.08 µm	16.76 mm	0.66 in	0.112 in	2.84 mm
3M Electronic Specialty N3372-6202RB	2	1.75 A	Header	Gold	60	0.652 in	16.56 mm	Solder	-55 C	105 ░C	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.24 in	6.1 mm	Male Pin			Latch Lock/Eject Hooks	All	0.1 in	2.54 mm	17.27 mm	0.68 in	UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Board to Board Cable	Copper Alloy	Square	0.76 Ám	30 Áin	Tin	Black	200 µin	5.08 µm			0.112 in	2.84 mm
3M Electronic Specialty N3372-2303RB	2	1.75 A	Header	Gold	60	0.695 in	17.65 mm	Solder	-55 C	105 ░C	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT) Glass Filled	0.24 in	6.1 mm	Male Pin	3.94 mm	0.155 "	Latch Lock/Eject Hooks Long	All	0.1 in	2.54 mm	17.27 mm	0.68 in	UL94 V-0	0.1 "	2.54 mm	Shrouded - 3 Wall	Board to Board Cable	Copper Alloy	Square	0.76 Ám	30 Áin	Tin	Black	200 µin	5.08 µm

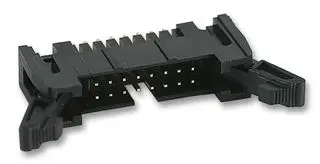

3M Electronic Specialty N3372-6302RB	2	1.75 A	Header	Gold	60	0.652 in	16.56 mm	Solder	-55 C	105 ░C	Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.24 in	6.1 mm	Male Pin			Latch Lock/Eject Hooks Long	All	0.1 in	2.54 mm	17.27 mm	0.68 in	UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Board to Board Cable	Copper Alloy	Square	0.76 Ám	30 Áin	Tin	Black	200 µin	5.08 µm			0.112 in	2.84 mm
3M Electronic Specialty N3372-5002RB	2	1.75 A	Header	Gold	60			Solder	-55 C	105 ░C	Right Angle Through Hole	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.24 in	6.1 mm	Male Pin			Push-Pull	All	0.1 in	2.54 mm	8.64 mm	0.34 in	UL94 V-0	0.1 "	2.54 mm	Shrouded - 4 Wall	Board to Board Cable	Copper Alloy	Square	0.76 Ám	30 Áin	Tin	Black	200 µin	5.08 µm			0.112 in	2.84 mm
