R14142 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

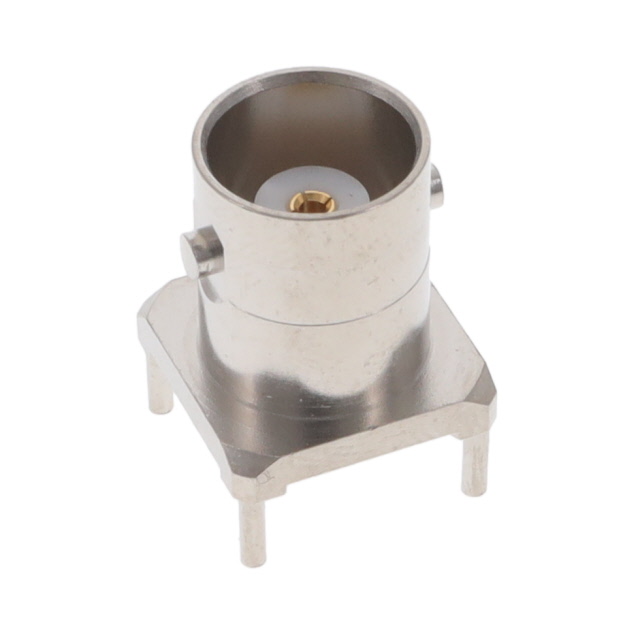

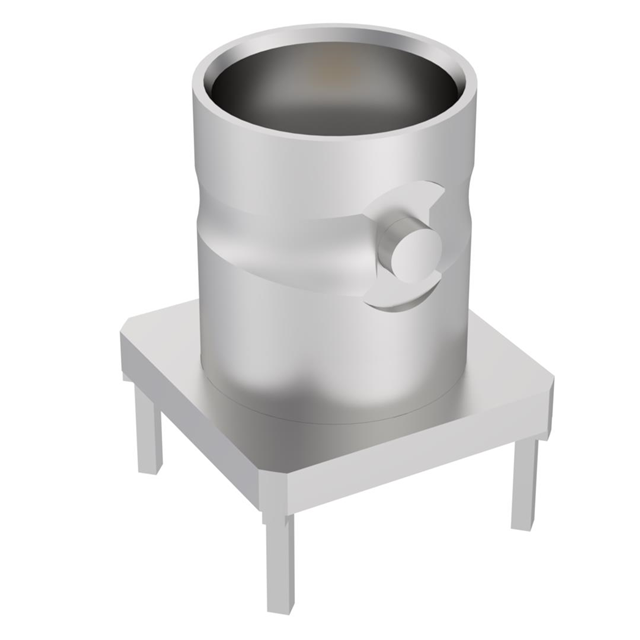

BNC / STRAIGHT JACK RECEPTACLE F
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Finish | Mating Cycles | Center Contact Plating | Body Material | Fastening Type | Connector Type | Shield Termination | Housing Color | Frequency - Max [Max] | Mounting Type | Center Contact Material | Number of Ports | Connector Style | Impedance | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 335 V | Nickel | 500 | Gold | Brass | Bayonet Lock | Female Socket Jack | Solder | Silver | 4 GHz | Through Hole | Beryllium Copper | 1 | BNC | 50 Ohms | Solder |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 500 V | Nickel | 500 | Gold | Brass | Bayonet Lock | Female Socket Jack | Solder | Silver | 4 GHz | Through Hole | Beryllium Copper | 1 | BNC | 50 Ohms | Solder |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | -35 °C | 70 °C | 500 V | Gold | Brass | Bayonet Lock | Female Socket Jack | Solder | 1.5 GHz | Through Hole | Brass | 1 | BNC | 50 Ohms | Solder |
