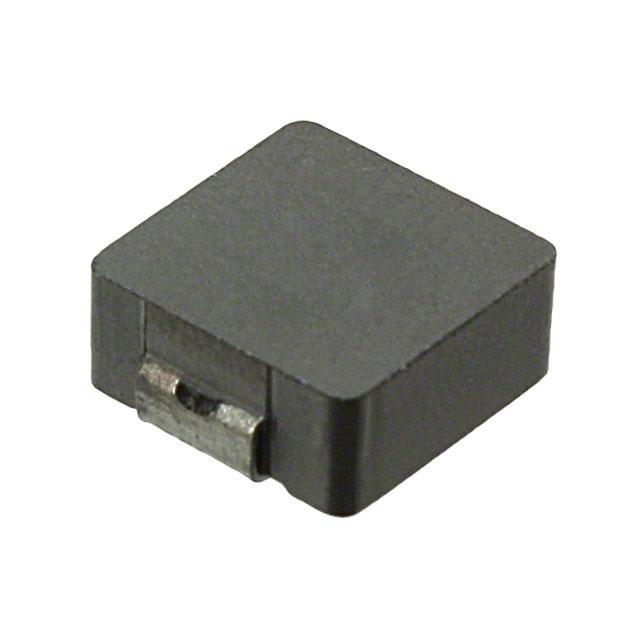

PCMB Series
Manufacturer: Susumu
Beta
⌘K
POWER INDUCTORS - SMD COIL 2.2 UH POWER CHOKE 20% SMD
| Part | Current - Saturation (Isat) | DC Resistance (DCR) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Tolerance | Inductance | Mounting Type | Current Rating (Amps) | Shielding | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Susumu | 29 A | 8 mOhm | 0.13 in | 3.3 mm | 100 kHz | 20 % | 2.2 µH | Surface Mount | 16 A | Unshielded | Nonstandard | |||||
 Susumu | 9.5 A | 0.13 in | 3.3 mm | 100 kHz | 20 % | 6.8 µH | Surface Mount | 7.5 A | Unshielded | Nonstandard | 10 mm | 11.5 mm | 0.453 " | 0.394 in | 24 mOhm | |
 Susumu | 40 A | 2.8 mOhm | 100 kHz | 20 % | 220 nH | Surface Mount | 23 A | Unshielded | Nonstandard | 6.6 mm | 6.95 mm | 0.274 in | 0.26 in |
