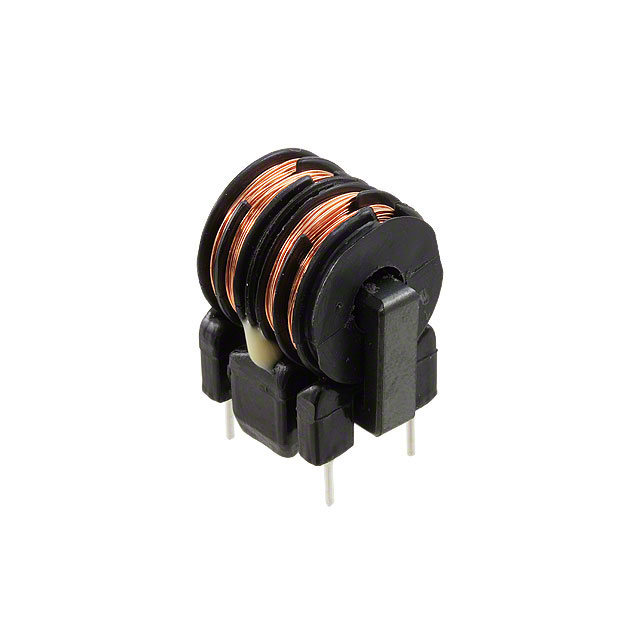

SS21V Series

Manufacturer: KEMET

Catalog

COMMON MODE FILTER, 2.3MH, 2.5A ROHS COMPLIANT: YES

Part	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Height (Max) [z]	Voltage Rating - AC	Current Rating (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Inductance @ Frequency	Mounting Type	Package / Case	DC Resistance (DCR) (Max) [Max]	DC Resistance (DCR) (Max)	Height (Max) [Max] [z]	Height (Max)

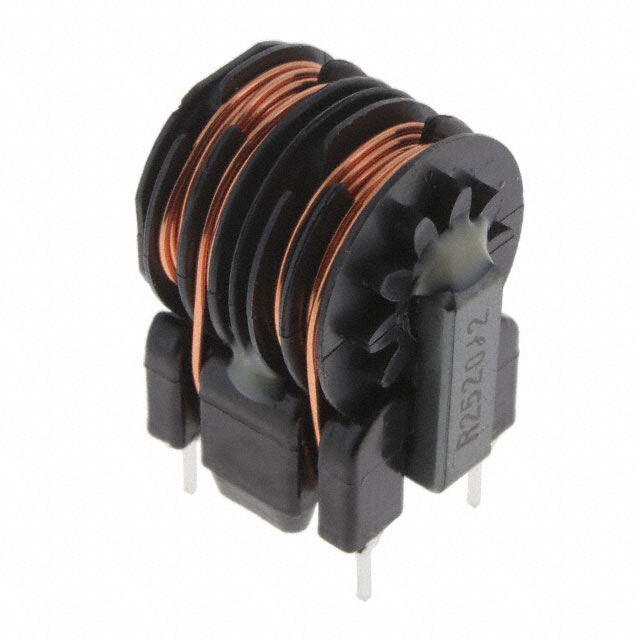

KEMET SS21V-R250023	Power Line	0.811 in	0.661 in	16.8 mm	20.6 mm	0.965 in	24.5 mm	250 V	2.5 A	120 °C	-25 °C	2	1 kHz 2.3 mH	Through Hole	Vertical 4 PC Pin	100 mOhm
KEMET SS21V-180029	Power Line	0.811 in	0.661 in	16.8 mm	20.6 mm	0.965 in	24.5 mm	250 V	1.8 A	120 °C	-25 °C	2	1 kHz 2.9 mH	Through Hole	Vertical 4 PC Pin	200 mOhm
KEMET SS21V-030930	Power Line	0.807 "	0.65 "	16.5 mm	20.5 mm	0.965 in	24.5 mm	250 V	300 mA	120 °C	-25 °C	2	93 mH	Through Hole	Vertical 4 PC Pin	5.9 Ohm
KEMET SS21V-060220	Power Line	0.807 "	0.65 "	16.5 mm	20.5 mm	0.965 in	24.5 mm	250 V	600 mA	120 °C	-25 °C	2	1 kHz 22 mH	Through Hole	Vertical 4 PC Pin	1.5 Ohm
KEMET SS21V-R100146	Power Line	0.807 "	0.65 "	16.5 mm	20.5 mm	0.965 in	24.5 mm	250 V	1 A	120 °C	-25 °C	2	14.6 mH	Through Hole	Vertical 4 PC Pin		600 mOhm
KEMET SS21V-R150057	Power Line	0.807 "	0.65 "	16.5 mm	20.5 mm	0.965 in	24.5 mm	250 V	1.5 A	120 °C	-25 °C	2	5.7 mH	Through Hole	Vertical 4 PC Pin	300 mOhm
KEMET SS21V-300008	Power Line	0.811 in	0.661 in	16.8 mm	20.6 mm	0.965 in	24.5 mm	250 V	3 A	120 °C	-25 °C	2	800 µH	Through Hole	Vertical 4 PC Pin		70 mOhm
KEMET SS21V-R110100	Power Line	0.807 "	0.65 "	16.5 mm	20.5 mm	0.965 in	24.5 mm	250 V	1.1 A	120 °C	-25 °C	2	10 mH	Through Hole	Vertical 4 PC Pin	450 mOhm
KEMET SS21V-200024	Power Line	0.807 "	0.65 "	16.5 mm	20.5 mm	0.965 in	24.5 mm	250 V	2 A	120 °C	-25 °C	2	1 kHz 2.4 mH	Through Hole	Vertical 4 PC Pin	150 mOhm
KEMET SS21V-R400005	Power Line	0.807 "	0.65 "	16.5 mm	20.5 mm			250 V		120 °C	-25 °C	2		Through Hole	Vertical 4 PC Pin			1.004 in	25.5 mm
