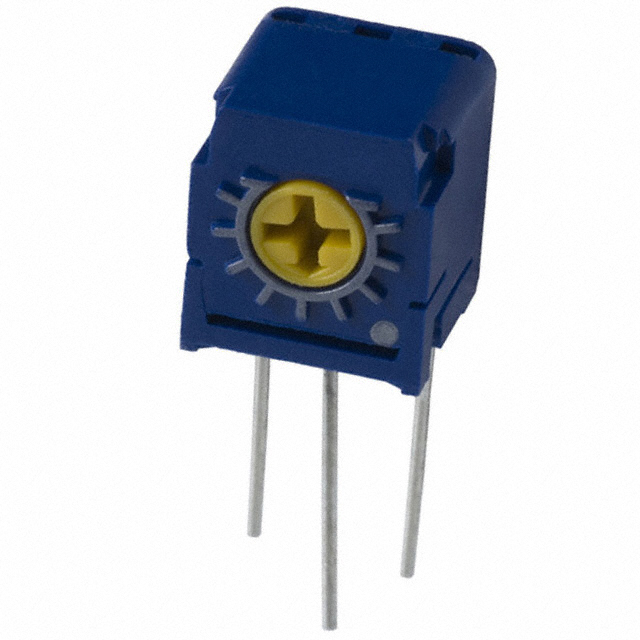

CT6EX Series

Manufacturer: Nidec Components Corporation

Catalog

TRIMMER 20K OHM 0.5W PC PIN SIDE

Part	Mounting Type	Resistive Material	Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Power (Watts)	Adjustment Type	Temperature Coefficient	Termination Style	Number of Turns	Tolerance
Nidec Components Corporation CT-6EX203	Through Hole	Cermet	20 kOhms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX104	Through Hole	Cermet	100 kOhms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX504	Through Hole	Cermet		0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX503	Through Hole	Cermet	50 kOhms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX502	Through Hole	Cermet	5 kOhms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX204	Through Hole	Cermet	200000 Ohms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX201	Through Hole	Cermet	200 Ohms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX103	Through Hole	Cermet	10000 Ohms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX105	Through Hole	Cermet	1 MOhms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
Nidec Components Corporation CT-6EX501	Through Hole	Cermet	500 Ohms	0.276 in	0.323 in	7 mm	8.2 mm	0.5 W	0.5 W	Side Adjustment	100 ppm/°C	PC Pins	1	10 %
