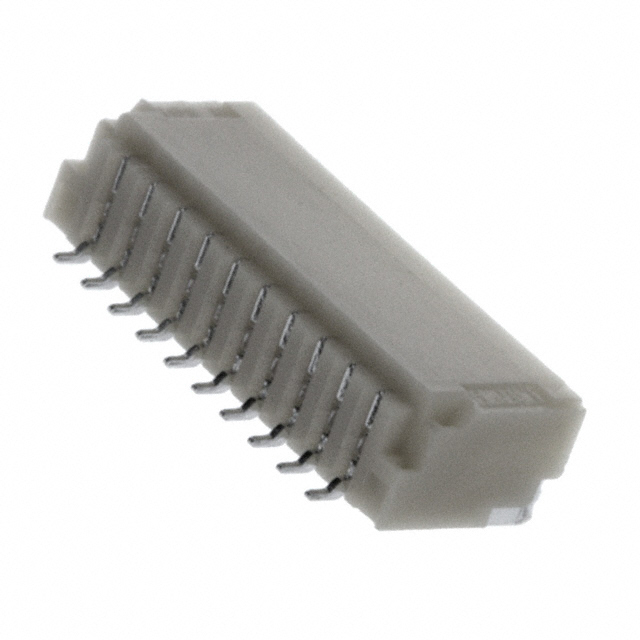

SM10B-SR Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 10POS 1MM
| Part | Voltage Rating | Pitch - Mating | Pitch - Mating | Shrouding | Material Flammability Rating | Connector Type | Number of Rows | Insulation Material | Insulation Color | Style | Number of Positions Loaded | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Termination | Fastening Type | Number of Positions | Features | Mounting Type | Contact Material | Contact Type | Contact Finish - Post | Contact Finish - Mating | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 50 V | 1 mm | 0.039 in | Shrouded - 4 Wall | UL94 V-0 | Header | 1 | Nylon Polyamide (PA) | Natural | Board to Cable/Wire | All | 0.114 in | 2.9 mm | 85 °C | -25 °C | Square | Solder | Push-Pull | 10 | Solder Retention | Right Angle Surface Mount | Copper Alloy | Male Pin | Tin | ||
 JST Sales America Inc. | 50 V | 1 mm | 0.039 in | Shrouded - 4 Wall | UL94 V-0 | Header | 1 | Nylon Polyamide (PA) | Natural | Board to Cable/Wire | All | 0.114 in | 2.9 mm | 85 °C | -25 °C | Square | Solder | Push-Pull | 10 | Solder Retention | Right Angle Surface Mount | Copper Alloy | Male Pin | Gold | 0.7 A |
