747459 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

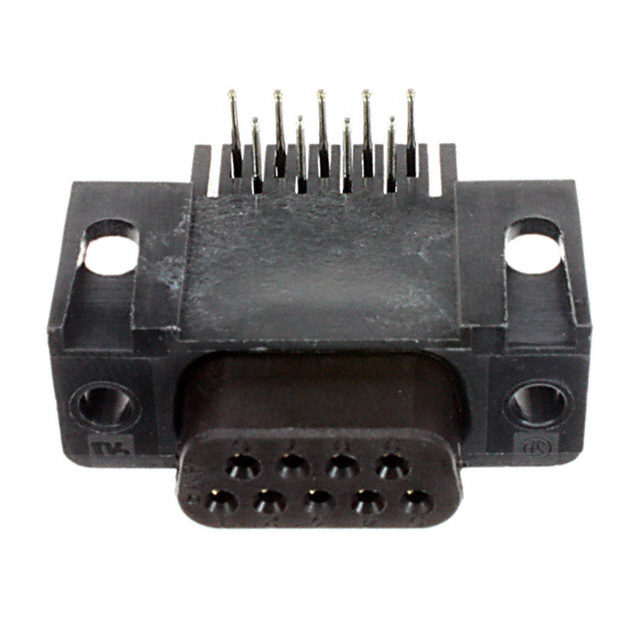

CONN D-SUB RCPT 9POS R/A SLDR
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Contact Finish | Termination | Number of Rows [custom] | Connector Style | Mounting Type | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Current Rating (Amps) | Backset Spacing | Backset Spacing | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Material Flammability Rating | Contact Type | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Gold | Solder | 2 | D-Sub | Right Angle Through Hole | 9 | 1 | DE E | 6 A | 0.59 in | 14.99 mm | Housing/Shell (Unthreaded) | 30 Áin | 0.76 Ám | Receptacle Female Sockets | UL94 V-0 | Signal | |
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Gold | Solder | 2 | D-Sub | Right Angle Through Hole | 9 | 1 | DE E | 6 A | 0.59 in | 14.99 mm | Housing/Shell (Unthreaded) | Receptacle Female Sockets | UL94 V-0 | Signal | Flash | ||
TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Gold | Solder | 2 | D-Sub | Right Angle Through Hole | 9 | 1 | DE E | 6 A | 0.59 in | 14.99 mm | 4-40 Mating Side Female Screwlock | Receptacle Female Sockets | UL94 V-0 | Signal | Flash | ||
TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Gold | Solder | 2 | D-Sub | Right Angle Through Hole | 9 | 1 | DE E | 6 A | 0.59 in | 14.99 mm | 4-40 Mating Side Female Screwlock | 30 Áin | 0.76 Ám | Receptacle Female Sockets | UL94 V-0 | Signal |
