9AS3D Series

Catalog

ELECTROMECHNICAL POWER RELAYS, S

Part	Coil Resistance	Coil Current	Termination Style	Termination Style	Contact Material	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Switching Voltage	Contact Rating (Current)	Seal Rating	Relay Type	Contact Form	Approval Agency	Must Release Voltage	Operate Time	Coil Type	Load - Max Switching	Must Operate Voltage	Coil Voltage	Mounting Type

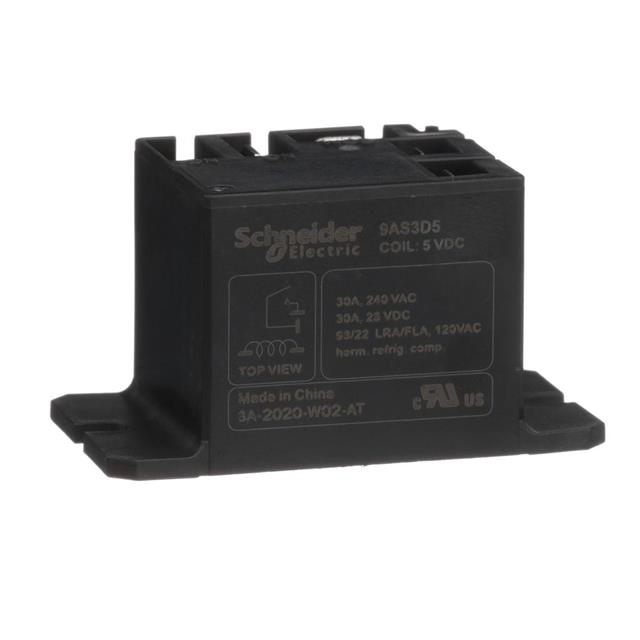

SCHNEIDER ELECTRIC 9AS3D5	27 Ohms	185.2 mA	0.187 in 0.25 in	Quick Connect	Silver Alloy	10 ms	40 °C	-40 C	28 VDC 277 VAC	30 A	Sealed - Fully	General Purpose	SPST-NO (1 Form A)	UL	0.5 VDC	20 ms	Non Latching	840 W 8310 VA	4 VDC	5 VDC	Chassis Mount

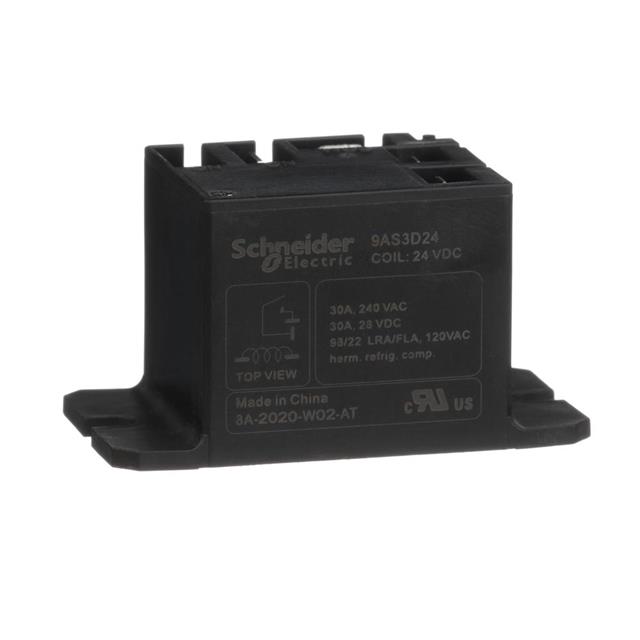

SCHNEIDER ELECTRIC 9AS3D24	660 Ohms	36.4 mA	0.187 in 0.25 in	Quick Connect	Silver Alloy	10 ms	40 °C	-40 C	28 VDC 277 VAC	30 A	Sealed - Fully	General Purpose	SPST-NO (1 Form A)	UL	2.4 VDC	20 ms	Non Latching	840 W 8310 VA	19.2 VDC	24 VDC	Chassis Mount

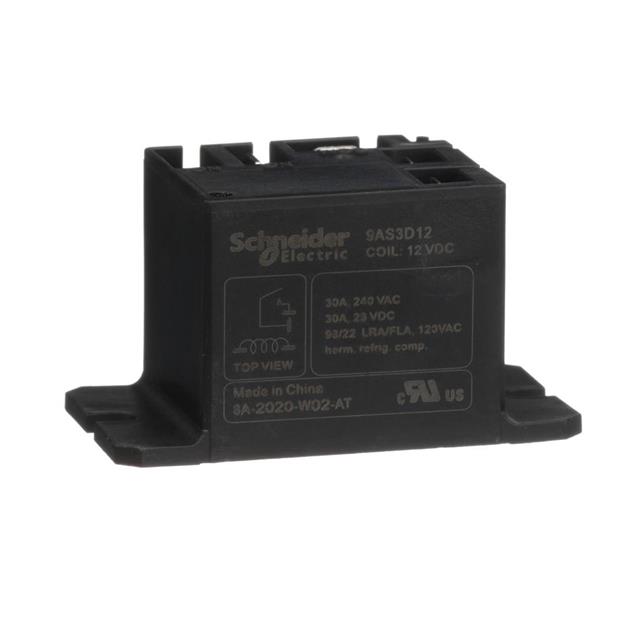

SCHNEIDER ELECTRIC 9AS3D12	155 Ohms	77.4 mA	0.187 in 0.25 in	Quick Connect	Silver Alloy	10 ms	40 °C	-40 C	28 VDC 277 VAC	30 A	Sealed - Fully	General Purpose	SPST-NO (1 Form A)	UL	1.2 VDC	20 ms	Non Latching	840 W 8310 VA	9.6 VDC	12 VDC	Chassis Mount
