LM3354 Series

Catalog

IC REG CHRG PUMP 5V 90MA 10VSSOP

Part	Frequency - Switching	Supplier Device Package	Mounting Type	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Current - Output	Package / Case	Package / Case [x]	Package / Case [x]	Function	Number of Outputs	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage - Input (Max) [Max]	Supplied Contents	Utilized IC / Part	Board Type	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Main Purpose	Voltage - Output
Texas Instruments LM3354MM-5.0/NOPB	1 MHz	10-VSSOP	Surface Mount	5 V	2.5 V	90 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	Step-Up/Step-Down	1	Positive	85 °C	-40 °C	1.81 mOhm	5.5 V
Texas Instruments LM3354MM-3.7/NOPB	1 MHz	10-VSSOP	Surface Mount	3.7 V	2.5 V	90 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	Step-Up/Step-Down	1	Positive	85 °C	-40 °C	1.81 mOhm	5.5 V
Texas Instruments LM3354MM-3.3/NOPB	1 MHz	10-VSSOP	Surface Mount	3.3 V	2.5 V	70 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	Step-Up/Step-Down	1	Positive	85 °C	-40 °C	1.81 mOhm	5.5 V

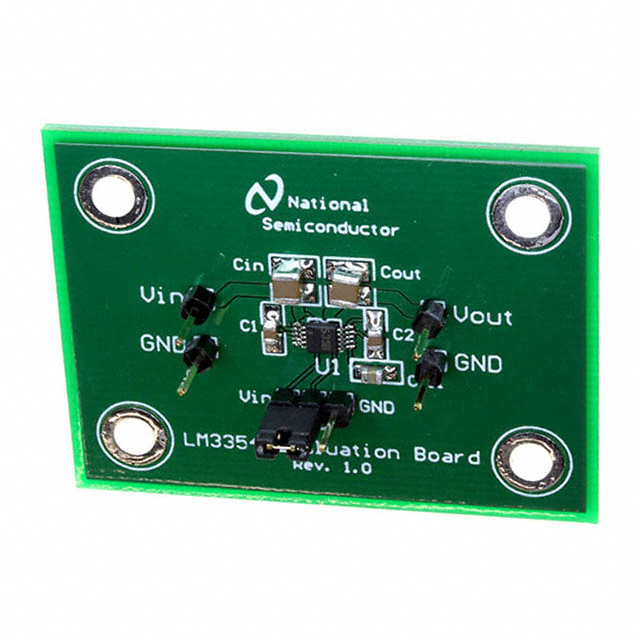

Texas Instruments LM3354-1.8EVAL	1 MHz					90 mA											Board(s)	LM3354	Fully Populated	Non-Isolated	1	2.5 V	5.5 V	Buck-Boost	DC/DC Step Up or Down	1.8 V
Texas Instruments LM3354MM-1.8/NOPB	1 MHz	10-VSSOP	Surface Mount	1.8 V	2.5 V	90 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	Step-Up/Step-Down	1	Positive	85 °C	-40 °C	1.81 mOhm	5.5 V
Texas Instruments LM3354MMX-5.0/NOPB	1 MHz	10-VSSOP	Surface Mount	5 V	2.5 V	90 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	Step-Up/Step-Down	1	Positive	85 °C	-40 °C	1.81 mOhm	5.5 V
Texas Instruments LM3354MM-4.1/NOPB	1 MHz	10-VSSOP	Surface Mount	4.1 V	2.5 V	90 mA	10-MSOP 10-TFSOP	3 mm	0.118 in	Step-Up/Step-Down	1	Positive	85 °C	-40 °C	1.81 mOhm	5.5 V
