RXEF Series

Catalog

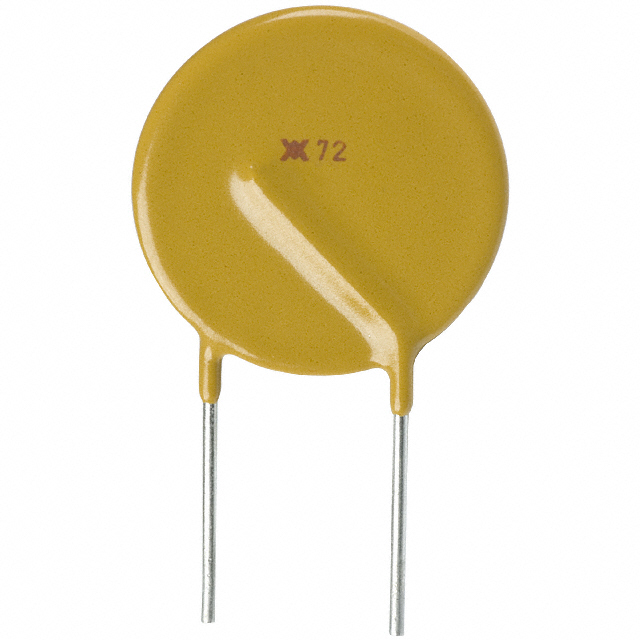

RESETTABLE FUSES - PPTC RADIAL LEAD 3A 72V 40A IMAX

Part	Resistance - Post Trip (R1) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension	Size / Dimension [custom]	Size / Dimension [diameter]	Current - Trip (It)	Package / Case	Lead Spacing	Lead Spacing	Voltage - Max [Max]	Type	Current - Max [Max]	Time to Trip	Mounting Type	Resistance - Initial (Ri) (Min) [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Approval Agency	Height - Seated (Max) [Max]	Current - Hold (Ih) (Max)	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [diameter]	Size / Dimension [custom]	Size / Dimension [diameter]	Height - Seated (Max)	Size / Dimension [z]	Size / Dimension [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
LITTELFUSE RXEF300-2	100 mOhms	85 °C	-40 C	3 mm 23.9 mm	0.118 "	0.941 in	6 A	Disc Radial	10.15 mm	0.4 "	72 V	Polymeric	40 A	19.8 s	Through Hole	40 mOhms	28.6 mm	1.126 in	3 A
LITTELFUSE RXEF185-2		85 °C	-40 C			0.689 in	3.7 A	Disc Radial	5.05 mm	0.199 "	72 V	Polymeric	40 A		Through Hole	80 mOhms		22.4 mm		CQC CSA TUV UL	0.882 "	1.85 A	3 mm	0.118 in	17.5 mm
LITTELFUSE RXEF250	130 mOhms	85 °C	-40 C				5 A	Disc Radial	10.15 mm	0.4 "	72 V	Polymeric	40 A	15.6 s	Through Hole	50 mOhms				CQC CSA TUV UL	1 in	2.5 A	3 mm		20.8 mm	0.118 "	0.819 "	25.4 mm
LITTELFUSE RXEF020S	4.4 Ohms	85 °C	-40 C			0.291 "	400 mA	Disc Radial	5.05 mm	0.199 "	72 V	Polymeric	40 A	2.2 s	Through Hole	1.83 Ohms		11.7 mm	200 mA						7.4 mm				3 mm	0.118 in	0.461 in
LITTELFUSE RXEF030	2.1 Ohms	85 °C	-40 C			0.291 "	600 mA	Disc Radial	5.08 mm	0.2 in	72 V	Polymeric	40 A	3 s	Through Hole	880 mOhms		12.7 mm	300 mA		0.5 in				7.4 mm				3 mm	0.118 in
LITTELFUSE RXEF017-2	8 Ohms	85 °C	-40 C				340 mA	Disc Radial	5.08 mm	0.2 in	60 V	Polymeric	40 A	3 s	Through Hole	3.3 Ohms		12.7 mm	170 mA		0.5 in											0.118 in	3 mm	7.4 mm	0.291 in
