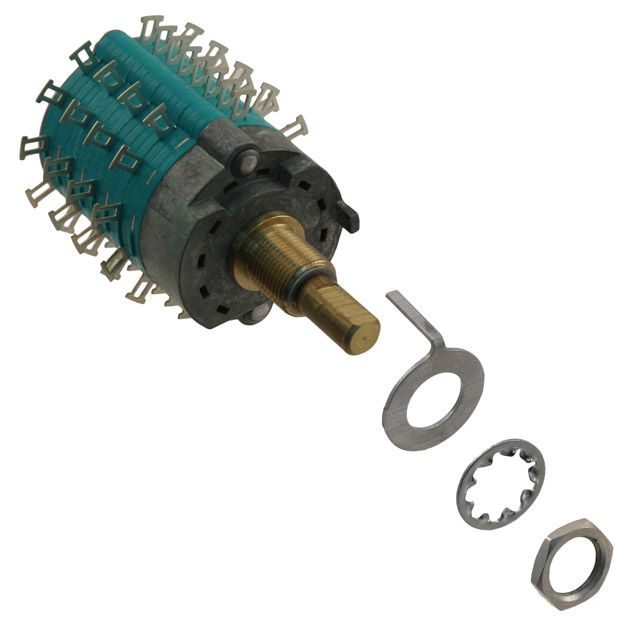

C4D0806 Series
Manufacturer: Electroswitch
Beta
⌘K
SWITCH ROTARY 2-6POS 300MA 125V
| Part | Panel Cutout Dimensions [diameter] | Angle of Throw | Contact Material | Contact Timing | Index Stops | Current Rating (Amps) | Termination Style | Circuit per Deck | Actuator Length [x] | Number of Positions [Min] | Number of Positions [Max] | Number of Decks | Mounting Type | Number of Poles per Deck | Depth Behind Panel [z] | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 30 ° | Brass | Non-Shorting (BBM) | Adjustable | 300 mA 500 mA | Solder Lug | DP6T | 0.5 in | 2 | 6 | 4 | Panel Mount | 2 | 41.76 mm | 125 V | 28 V | Flatted (6.35mm Dia) | Silver |
