SMS24 Series

Catalog

CONN RCPT HSG 24POS 5.08MM

Part	Note	Row Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Contact Type	Insulation Material	Mounting Type	Pitch	Connector Type	Fastening Type	Contact Termination	Color	Number of Rows	Number of Positions	Shrouding	Insulation Height	Pitch - Mating	Termination	Style	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions Loaded	Ingress Protection	Current Rating	Contact Shape	Contact Length - Post	Contact Material	Features	Insulation Color	Overall Contact Length	Row Spacing - Mating	Contact Length - Mating	Accessory Type	For Use With/Related Products

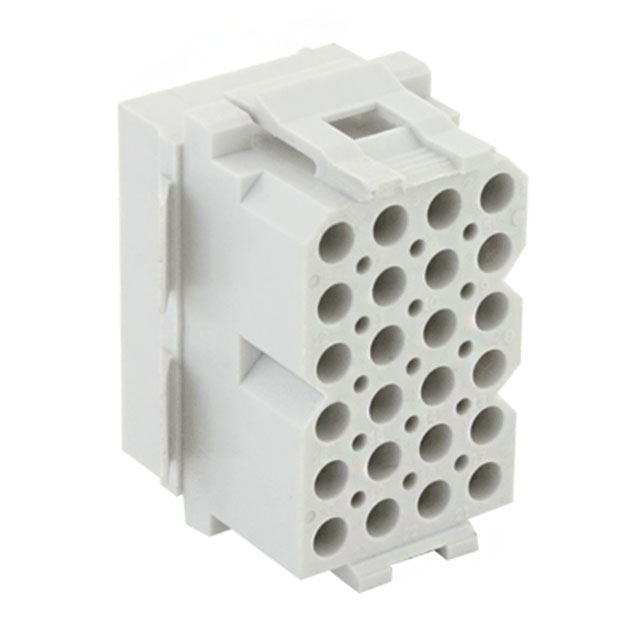

Amphenol Aerospace Operations SMS24R3	Contacts Not Included	0.2 in	-40 °C	105 °C	Female Socket	Nylon 6/6 Polyamide (PA66)	Panel Mount	5.08 mm	Receptacle	Latch Lock	Crimp	White	6	24 pos

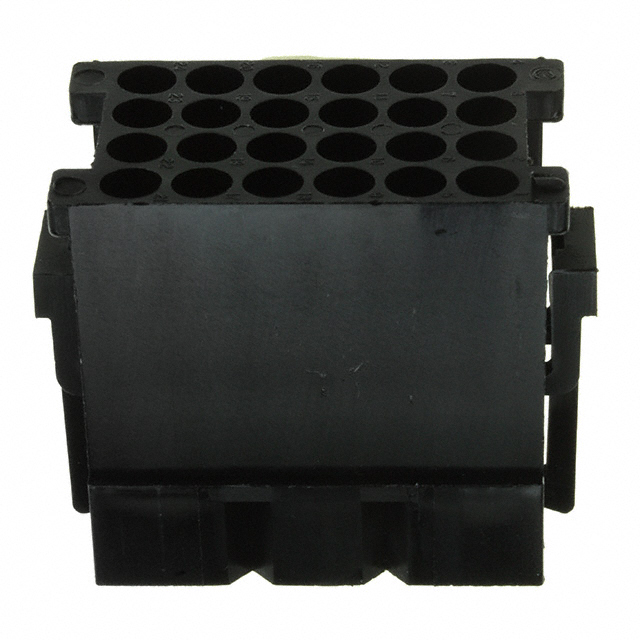

Amphenol Aerospace Operations SMS24P-1	Contacts Not Included	0.2 in	-40 °C	105 °C	Male Pin	Nylon 6/6 Polyamide (PA66)	Free Hanging (In-Line)	5.08 mm	Plug	Latch Holder	Crimp	Black	4	24 pos

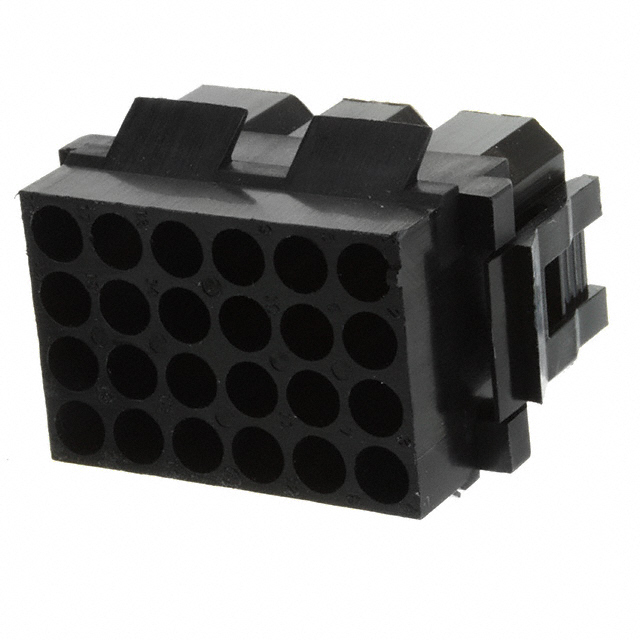

Amphenol Aerospace Operations SMS24R-1	Contacts Not Included	0.2 in	-40 °C	105 °C	Female Socket	Nylon 6/6 Polyamide (PA66)	Panel Mount Snap-In	5.08 mm	Receptacle	Latch Lock	Crimp	Black	4	24 pos
Amphenol Aerospace Operations SMS24GE4			-55 °C	105 °C	Male Pin	Glass Filled Polyester	Through Hole		Header	Locking Ramp			6	24 pos	Unshrouded	0.526 in	0.2 in	Solder	Board Cable/Wire	UL94 V-0	16 µin	Gold	All	IP40	7.5 A	Circular	0.138 in	Brass	Mounting Flange	Black	0.939 in	0.2 in	0.28 in
Amphenol Aerospace Operations SMS24H1														24 pos																				Strain Relief	SMS Series
