XB24CD Series

Catalog

RF TXRX MOD ISM>1GHZ WIRE ANT TH

Part	Antenna Type	Utilized IC / Part	Serial Interfaces	Current - Transmitting	Modulation	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Sensitivity	Data Rate	Current - Receiving	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Mounting Type

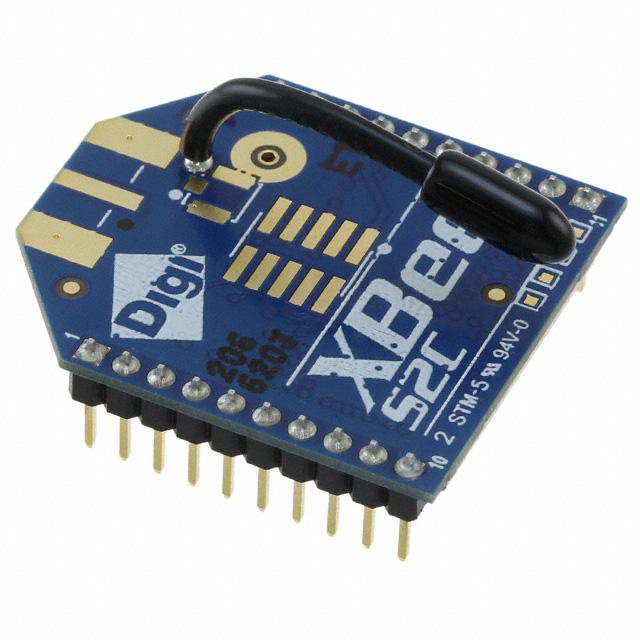

Digi International XB24CDMWIT-001	Integrated Wire Antenna	EM357	SPI UART	45 mA	DSSS	8 dBm	85 °C	-40 C	2.4 GHz	-102 dBm	250 KBd	31 mA	Module	3.6 V	2.7 V	General ISM > 1GHz	Through Hole
Digi International XB24CDMSIT-001	RP-SMA	EM357	SPI UART	45 mA	DSSS	8 dBm	85 °C	-40 C	2.4 GHz	-102 dBm	250 KBd	31 mA	Module	3.6 V	2.7 V	General ISM > 1GHz	Through Hole
Digi International XB24CDMUIT-001	Antenna Not Included U.FL	EM357	SPI UART	45 mA	DSSS	8 dBm	85 °C	-40 C	2.4 GHz	-102 dBm	250 KBd	31 mA	Module	3.6 V	2.7 V	General ISM > 1GHz	Through Hole
Digi International XB24CDMPIT-001	Integrated Trace	EM357	SPI UART	45 mA	DSSS	8 dBm	85 °C	-40 C	2.4 GHz	-102 dBm	250 KBd	31 mA	Module	3.6 V	2.7 V	General ISM > 1GHz	Through Hole
