503908 Series
Manufacturer: Molex
Beta
⌘K
0.50MM PITCH EASY-ON ONE-TOUCH FAMILY FFC/FPC CONNECTOR FOR LVDS, NON-ZIF, WITH SIDE LOCKS, BOTTOM CONTACT STYLE, 3.75MM HEIGHT, RIGHT-ANGLE, SURFACE MOUNT, 51 CIRCUITS
| Part | Current Rating (Amps) | Mating Cycles | Housing Color | Number of Positions | Housing Material | Contact Finish | Termination | Contact Material | Mounting Type | Pitch | Pitch | Features | Flat Flex Type | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Voltage Rating | FFC, FCB Thickness | Cable End Type | Height Above Board [z] | Height Above Board [z] | Connector/Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.5 A | 20 | Black | 51 | Glass Filled Liquid Crystal Polymer (LCP) | Gold | Solder | Copper Alloy | Right Angle Surface Mount | 0.02 " | 0.5 mm | Solder Retention | FFC | 85 °C | -20 ░C | UL94 V-0 | 50 V | 0.33 mm | Tabbed | 0.148 in | 3.75 mm | Contacts Bottom |

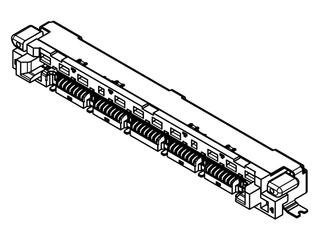

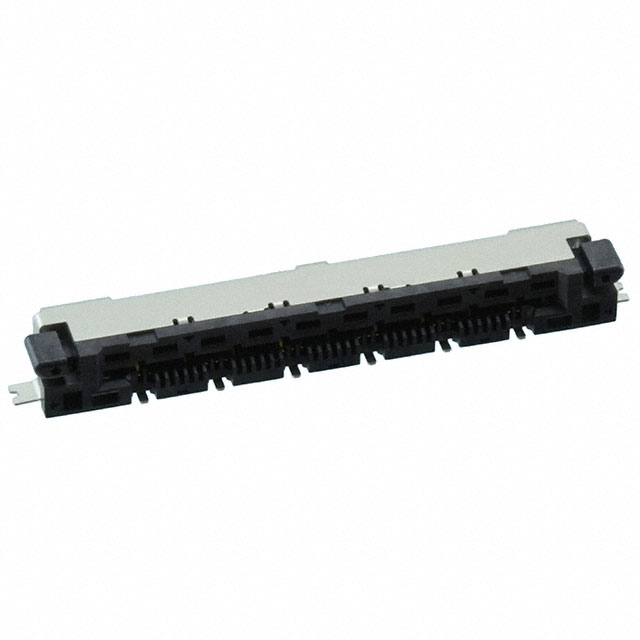

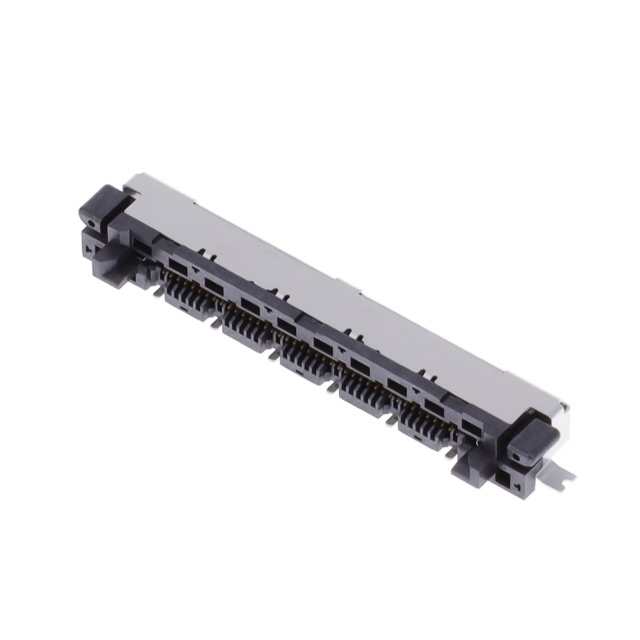

 Molex | 0.5 A | 20 | Black | 41 | Glass Filled Liquid Crystal Polymer (LCP) | Gold | Solder | Copper Alloy | Right Angle Surface Mount | 0.02 " | 0.5 mm | Solder Retention | FFC | 85 °C | -20 ░C | UL94 V-0 | 50 V | 0.33 mm | Tabbed | 0.148 in | 3.75 mm | Contacts Bottom |
 Molex | 0.5 A | 20 | Black | 41 | Glass Filled Liquid Crystal Polymer (LCP) | Gold | Solder | Copper Alloy | Right Angle Surface Mount | 0.02 " | 0.5 mm | Solder Retention | FFC | 85 °C | -20 ░C | UL94 V-0 | 50 V | 0.33 mm | Tabbed | 0.148 in | 3.75 mm | Contacts Bottom |

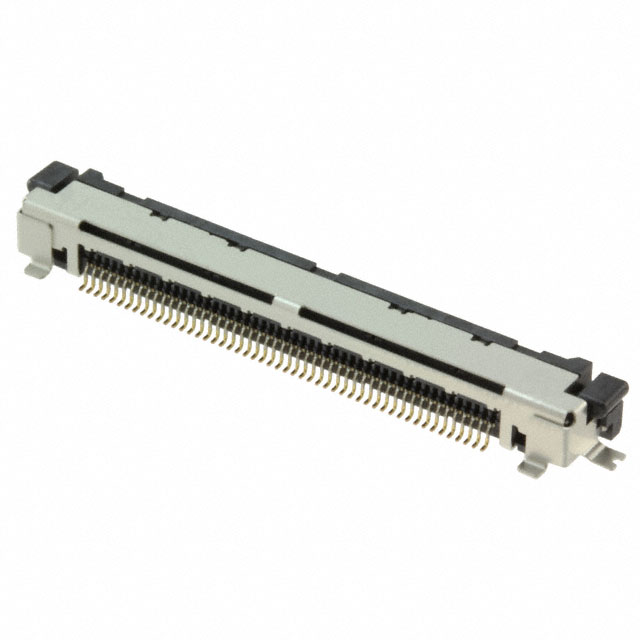

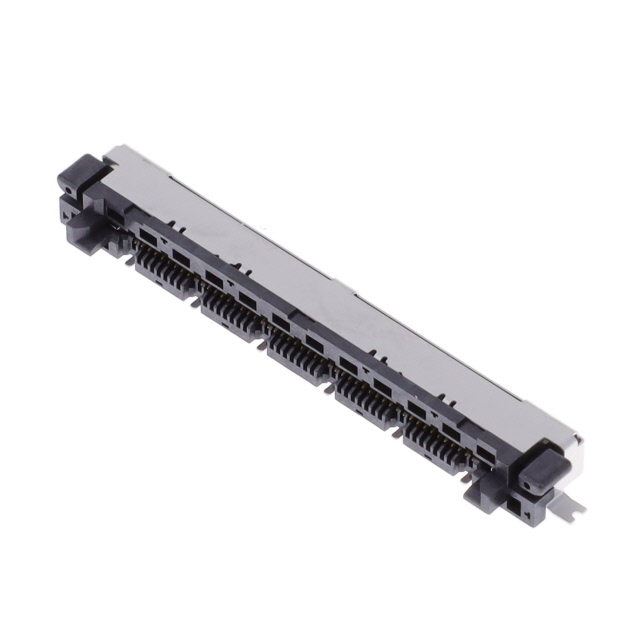

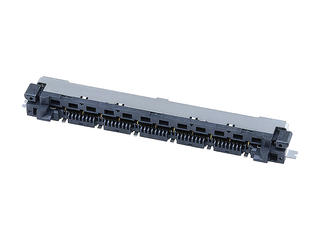

 Molex | 0.5 A | 20 | Black | 51 | Glass Filled Liquid Crystal Polymer (LCP) | Gold | Solder | Copper Alloy | Right Angle Surface Mount | 0.02 " | 0.5 mm | Solder Retention | FFC | 85 °C | -20 ░C | UL94 V-0 | 50 V | 0.33 mm | Tabbed | 0.148 in | 3.75 mm | Contacts Bottom |
