1986375 Series

Catalog

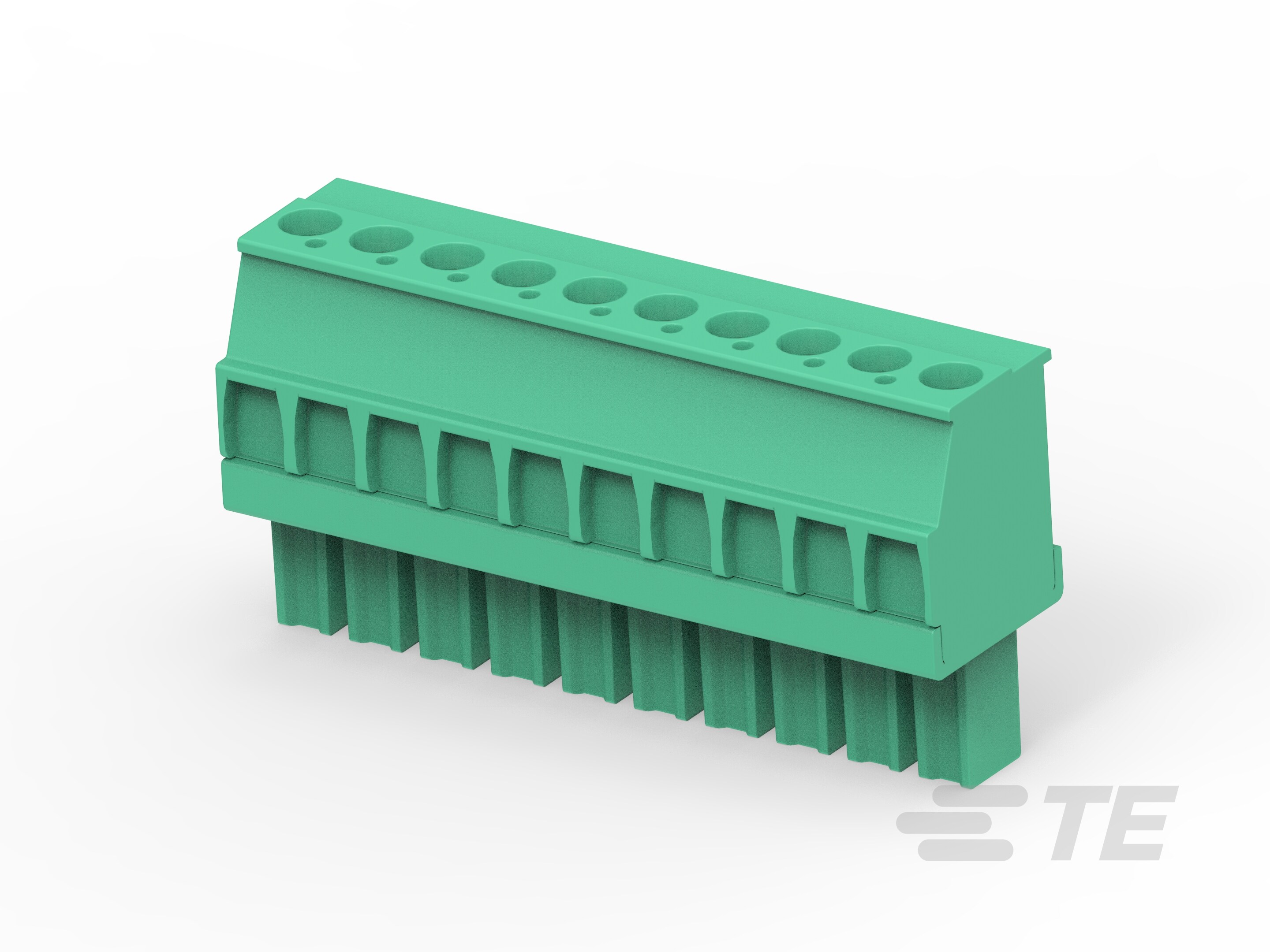

STR PLUG, 3.81MM, GREEN, LH, 10 POSN

Part	Type	Screw Size	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Material	Voltage - UL	Features	Pitch [x]	Pitch [x]	Color	Plug Wire Entry	Termination Style	Insulation Height	Insulation Height	Number of Positions	Mounting Type	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Positions Per Level	Current - UL
TE Connectivity Raychem Cable Protection 1-1986375-0	Plug Female Sockets	M2	1	-40 °C	110 °C	UL94 V-0	Phosphor Bronze	300 V	Side Stacking	0.15 in	3.81 mm	Green	270 °	Screw - Rising Cage Clamp	0.756 in	19.2 mm	10	Free Hanging (In-Line)	Tin	14 AWG	30 AWG	0.05 mm²	2 mm²	10	11 A

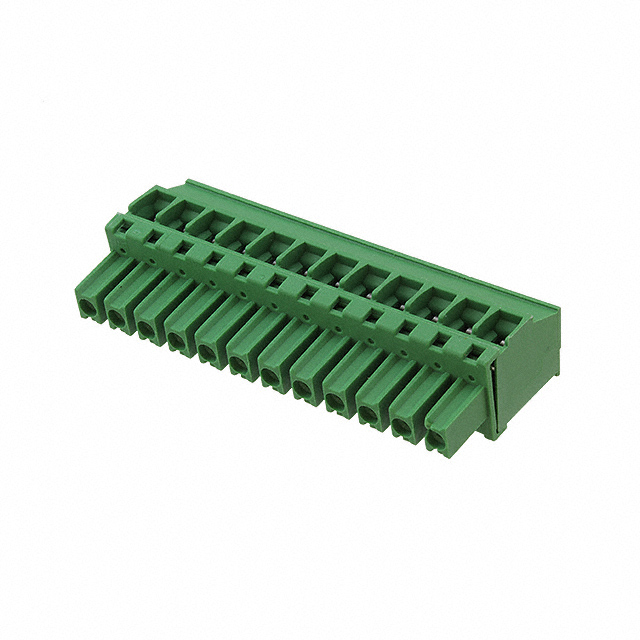

TE Connectivity Raychem Cable Protection 1-1986375-2	Plug Female Sockets	M2	1	-40 °C	110 °C	UL94 V-0	Phosphor Bronze	300 V	Side Stacking	0.15 in	3.81 mm	Green	270 °	Screw - Rising Cage Clamp	0.756 in	19.2 mm	12	Free Hanging (In-Line)	Tin	14 AWG	30 AWG	0.05 mm²	2 mm²	12	11 A

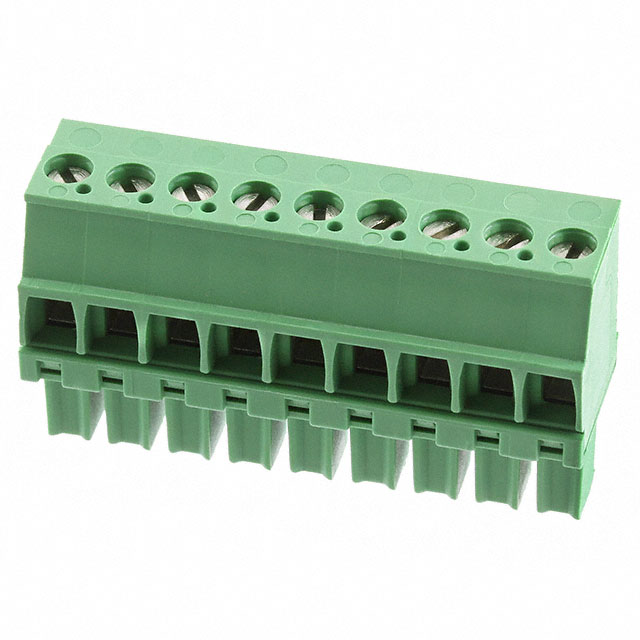

TE Connectivity Raychem Cable Protection 1986375-9	Plug Female Sockets	M2	1	-40 °C	110 °C	UL94 V-0	Phosphor Bronze	300 V	Side Stacking	0.15 in	3.81 mm	Green	270 °	Screw - Rising Cage Clamp	0.756 in	19.2 mm	9	Free Hanging (In-Line)	Tin	14 AWG	30 AWG	0.05 mm²	2 mm²	9	11 A
