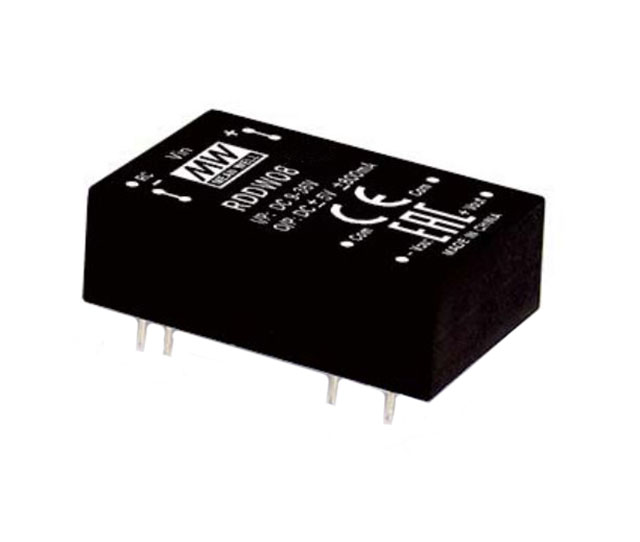

RDDW08G Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER
| Part | Current - Output (Max) | Current - Output (Max) | Voltage - Isolation | Efficiency | Package / Case | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Type | Voltage - Input (Min) [Min] | Voltage - Output 2 | Supplier Device Package | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Features | Mounting Type | Applications | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 800 mA | 800 mA | 1.5 kV | 83 % | 24-DIP Module 9 Leads | 8 W | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 75 V | 5 V | Isolated Module | 18 V | -5 V | 24-DIP | 2 | -40 °C | 85 °C | Remote On/Off | Through Hole | Railway | CE EAC | 50155 |
MEAN WELL USA Inc. | 333 mA | 1.5 kV | 86 % | 24-DIP Module 9 Leads | 8 W | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 75 V | 12 V | Isolated Module | 18 V | -12 V | 24-DIP | 2 | -40 °C | 85 °C | Remote On/Off | Through Hole | Railway | CE EAC | 50155 |
