9050-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

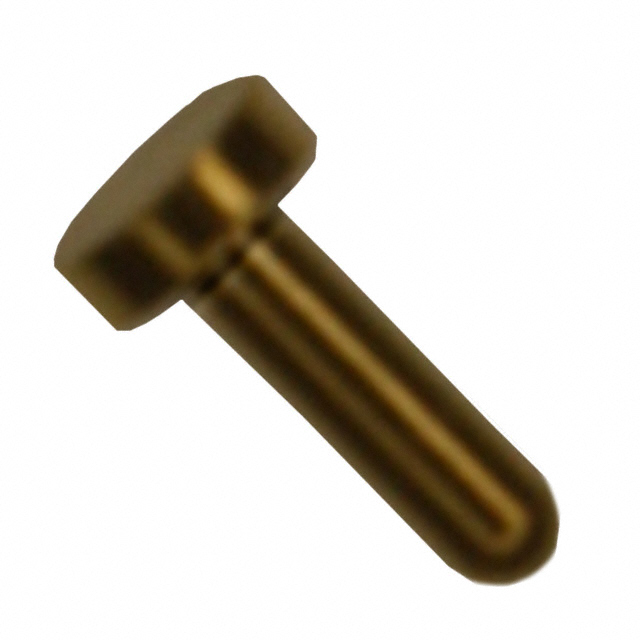

CONN PC PIN CIRC 0.012DIA GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Type | Contact Material | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Insulation | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.25 Ám | 10 Áin | Nail Head Single End | PC Pin | 0.41 mm | 0.016 in | Through Hole | Brass Alloy | 0.3 mm | 0.012 in | Solder | 0.64 mm | 0.025 in | Gold | Non-Insulated | 0.042 in | 1.07 mm | 0.05 in | 1.27 mm |
