2842152 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

8P,2MM,BRK HDR,DRRT,2.8,0.76AU,T

Part	Contact Length - Post [x]	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination	Connector Type	Contact Shape	Number of Positions Loaded	Insulation Color	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Material Flammability Rating	Contact Finish - Mating	Number of Rows	Contact Type	Insulation Height	Insulation Height	Shrouding	Number of Positions	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Number of Positions
TE Connectivity Raychem Cable Protection 2842152-4	0.11 in	2.79 mm	0.079 in	2 mm	125 VAC	2 A	2 çm	78.7 çin	Thermoplastic	125 °C	-40 °C	Through Hole Right Angle	Solder	Breakaway Header	Square	All	Black	4 mm	0.157 in	0.079 in	2 mm	UL94 V-0	Gold	2	Male Pin	1.5 mm	0.059 "	Unshrouded	8	Tin	30 Áin	0.76 Ám	Copper Alloy	Push-Pull
TE Connectivity Raychem Cable Protection 2842152-8	0.11 in	2.79 mm	0.079 in	2 mm	125 VAC	2 A	2 çm	78.7 çin	Thermoplastic	125 °C	-40 °C	Through Hole Right Angle	Solder	Breakaway Header	Square	All	Black	4 mm	0.157 in	0.079 in	2 mm	UL94 V-0	Gold	2	Male Pin	1.5 mm	0.059 "	Unshrouded		Tin	30 Áin	0.76 Ám	Copper Alloy	Push-Pull	16

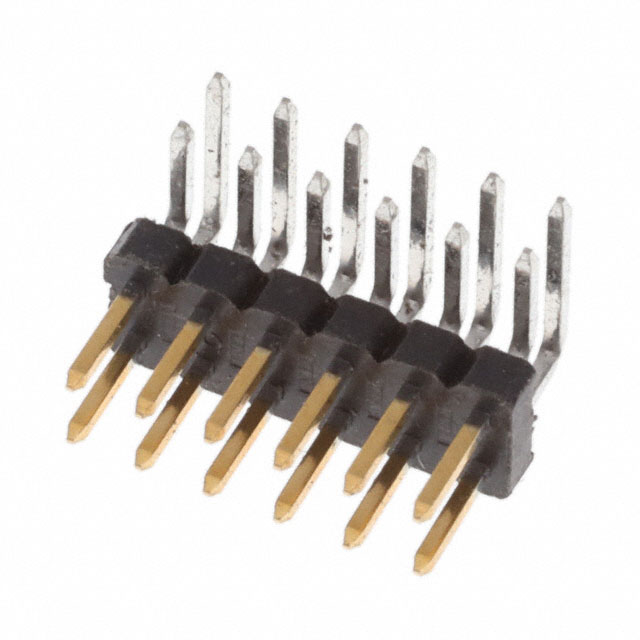

TE Connectivity Raychem Cable Protection 2842152-6	0.11 in	2.79 mm	0.079 in	2 mm	125 VAC	2 A	2 çm	78.7 çin	Thermoplastic	125 °C	-40 °C	Through Hole Right Angle	Solder	Breakaway Header	Square	All	Black	4 mm	0.157 in	0.079 in	2 mm	UL94 V-0	Gold	2	Male Pin	1.5 mm	0.059 "	Unshrouded	12	Tin	30 Áin	0.76 Ám	Copper Alloy	Push-Pull
TE Connectivity Raychem Cable Protection 2842152-5	0.11 in	2.79 mm	0.079 in	2 mm	125 VAC	2 A	2 çm	78.7 çin	Thermoplastic	125 °C	-40 °C	Through Hole Right Angle	Solder	Breakaway Header	Square	All	Black	4 mm	0.157 in	0.079 in	2 mm	UL94 V-0	Gold	2	Male Pin	1.5 mm	0.059 "	Unshrouded	10	Tin	30 Áin	0.76 Ám	Copper Alloy	Push-Pull
