LHA-09 Series
Manufacturer: Adam Tech
Beta
⌘K

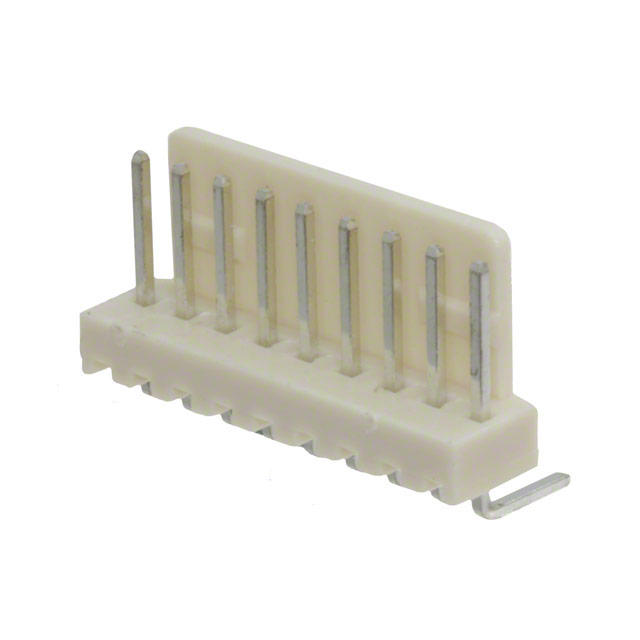

CONN WIRE TO BOARD HDR 9 POS 2.54MM SOLDER RA THRU-HOLE
| Part | Connector Type | Contact Length - Mating | Contact Length - Mating | Termination | Fastening Type | Contact Type | Number of Positions | Style | Voltage Rating | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Contact Shape | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post | Number of Positions Loaded | Number of Rows | Mounting Type | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Shrouding | Insulation Color | Material Flammability Rating | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Header | 0.293 in | 7.45 mm | Solder | Friction Lock | Male Pin | 9 | Board to Cable/Wire | 250 VAC | 0.228 " | 5.8 mm | Tin | Square | Brass | 85 °C | -25 °C | 0.134 " | 3.4 mm | All | 1 | Right Angle Through Hole | 0.1 " | 2.54 mm | 3 A | Shrouded - 1 Wall | White | UL94 V-2 | Nylon 6/6 Polyamide (PA66) |
