PT200 Series

Catalog

DIODE MODULES 200A 1600V 3 PHASE M ODULE

Part	Package / Case	Current - Average Rectified (Io)	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Diode Type	Technology	Voltage - Forward (Vf) (Max) @ If [Max]

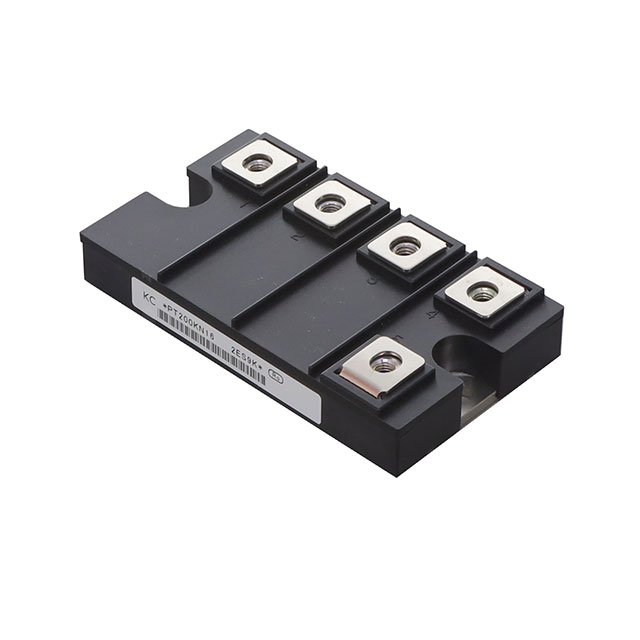

KYOCERA AVX PT200KN16	Module	200 A	Module	-40 °C	150 °C	10 mA	1.6 kV	Chassis Mount	1.45 V	Three Phase	Standard

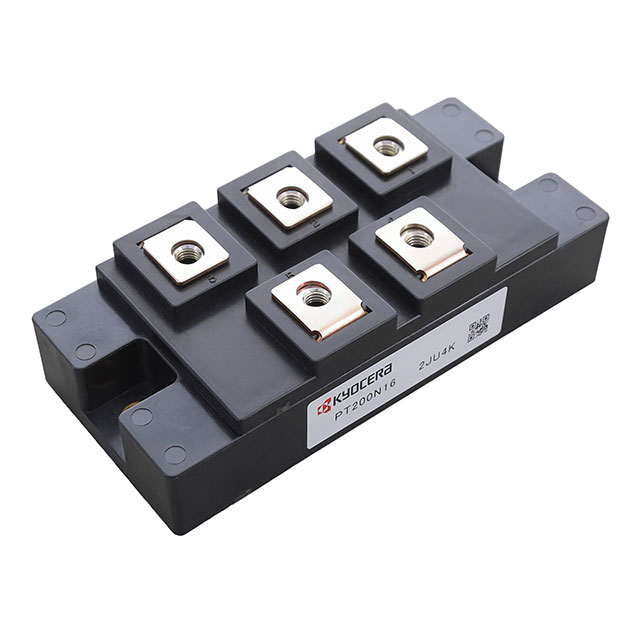

KYOCERA AVX PT200N16	Module	200 A	Module	-40 °C	150 °C	10 mA	1.6 kV	Chassis Mount		Three Phase	Standard	1.45 V
KYOCERA AVX PT200KN8	Module	200 A	Module	-40 °C	150 °C	7 mA	800 V	Chassis Mount	1.4 V	Three Phase	Standard
