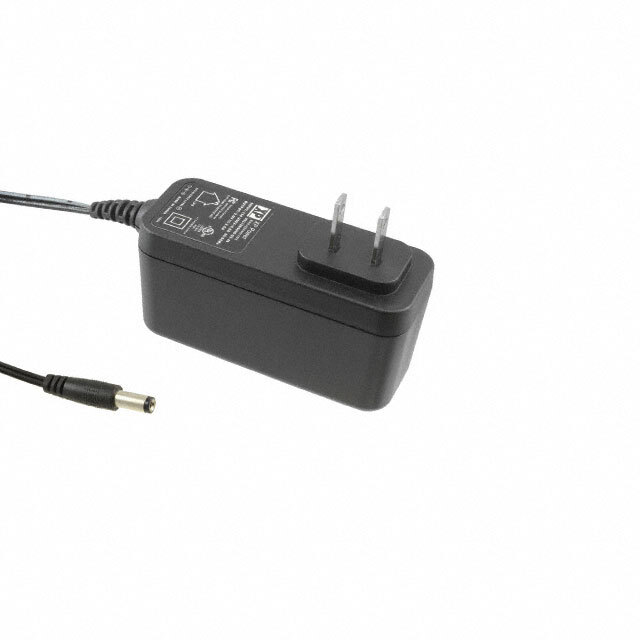

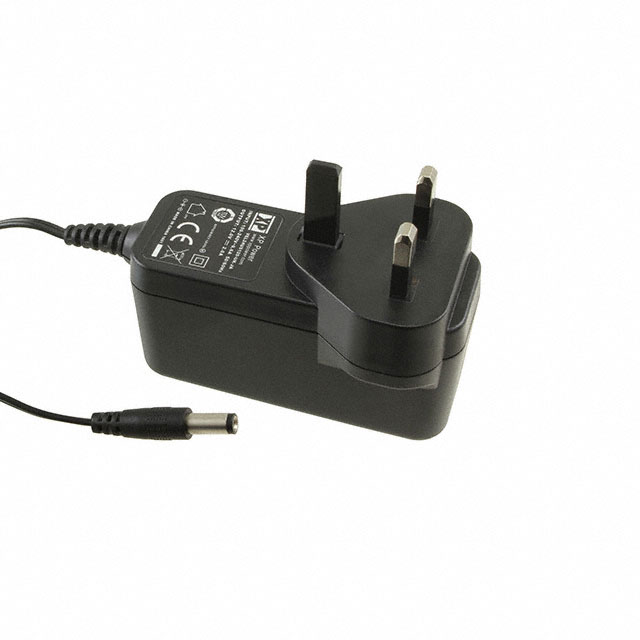

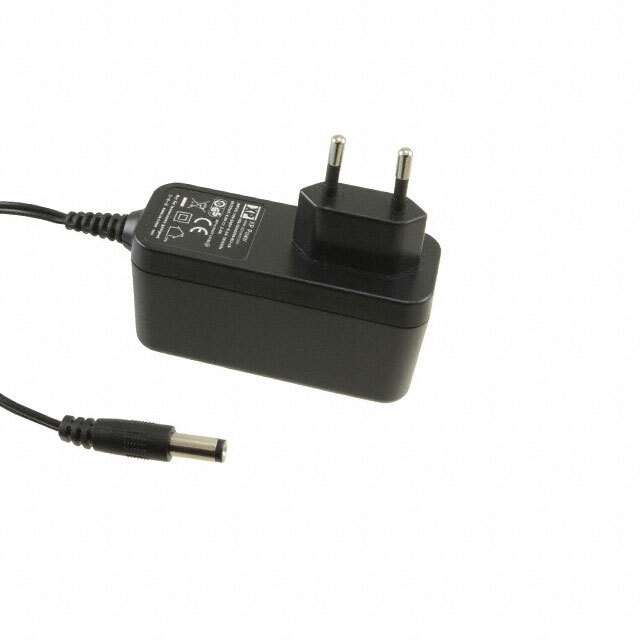

VEL18 Series

Manufacturer: XP Power

Catalog

AC/DC WALL MOUNT ADAPTER 12V 18W

Part	Weight	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Input Type	Region Utilized	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Standard Number	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Cord Length	Cord Length	Input Connector	Approval Agency	Voltage - Output	Form	No Load Power Consumption	Current - Output (Max) [Max]	Power (Watts)	Applications	Polarization	Size / Dimension	Size / Dimension
XP Power VEL18US120-UK-JA	85.28 g	0.188 lb	90 mm	49.5 mm	3.54 in	1.95 in	1.97 "	50 mm	Fixed Blade	United Kingdom	CoC Tier 2 Level VI	264 VAC	90 VAC	60 °C	62368-1	2.1 mm	5.5 mm	Barrel Plug	12 mm	1.5 m	59 in	BS 1363	CB TUV UL	12 V	Wall Mount	100 mW	1.5 A	18 W	ITE (Commercial)	Positive Center
XP Power VEL18US150-US-JA			90 mm	34 mm	3.54 in	1.34 in	1.87 in	47.5 mm	Fixed Blade	North America	CoC Tier 2 Level VI	264 VAC	90 VAC	60 °C	62368-1	2.1 mm	5.5 mm	Barrel Plug	12 mm	1.5 m	59 in	NEMA 1-15P	CB TUV UL	15 V	Wall Mount	100 mW	1.25 A	19 W	ITE (Commercial)	Positive Center
XP Power VEL18US150-UK-JA	85.28 g	0.188 lb	90 mm	49.5 mm	3.54 in	1.95 in	1.97 "	50 mm	Fixed Blade	United Kingdom	CoC Tier 2 Level VI	264 VAC	90 VAC	60 °C	62368-1	2.1 mm	5.5 mm	Barrel Plug	12 mm	1.5 m	59 in	BS 1363	CB TUV UL	15 V	Wall Mount	100 mW	1.25 A	19 W	ITE (Commercial)	Positive Center
XP Power VEL18US120-US-JA	85.28 g	0.188 lb	90 mm	34 mm	3.54 in	1.34 in	1.87 in	47.5 mm	Fixed Blade	North America	CoC Tier 2 Level VI	264 VAC	90 VAC	60 °C	62368-1	2.1 mm	5.5 mm	Barrel Plug	12 mm	1.5 m	59 in	NEMA 1-15P	CB TUV UL	12 V	Wall Mount	100 mW	1.5 A	18 W	ITE (Commercial)	Positive Center
XP Power VEL18US090-EU-JA	85.28 g	0.188 lb							Fixed Blade	Europe	CoC Tier 2 Level VI	264 VAC	90 VAC	60 °C	62368-1	2.1 mm	5.5 mm	Barrel Plug	12 mm	1.5 m	59 in	CEE 7/16	CB TUV UL	9 V	Wall Mount	100 mW	2 A	18 W	ITE (Commercial)	Positive Center	34 mm 57.6 mm 90 mm	1.34 " 2.26 " 3.54 "
XP Power VEL18US240-UK-JA			90 mm	49.5 mm	3.54 in	1.95 in	1.97 "	50 mm	Fixed Blade	United Kingdom	CoC Tier 2 Level VI	264 VAC	90 VAC	60 °C	62368-1	2.1 mm	5.5 mm	Barrel Plug	12 mm	1.5 m	59 in	BS 1363	CB TUV UL	24 V	Wall Mount	100 mW	750 mA	18 W	ITE (Commercial)	Positive Center
