BF030 Series

Manufacturer: GCT

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 14W, 2MM PITCH PIN HDR, DIL, SMT, VERT, W/PEG, GF, T+R+C

Part	Shrouding	Features	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insulation Material	Insulation Color	Termination	Current Rating (Amps)	Contact Finish - Post	Contact Type	Voltage Rating	Material Flammability Rating	Contact Finish - Mating	Contact Shape	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Mounting Type	Number of Rows [custom]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Pitch - Mating	Pitch - Mating	Connector Type	Fastening Type	Contact Finish Thickness - Post
GCT BF030-14A-B1-0200-0277-0600-LB	Unshrouded	Board Guide Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.079 in	2 mm	All	Surface Mount	2	2 mm	0.079 in	14	0.079 "	2 mm	Header	Push-Pull
GCT BF030-20A-B0-0600-0277-0600-LB	Unshrouded	Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.236 in	6 mm	All	Surface Mount	2	2 mm	0.079 in	20	0.079 "	2 mm	Header	Push-Pull
GCT BF030-44A-B0-0200-0277-0600-LD	Unshrouded		Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.079 in	2 mm	All	Surface Mount	2	2 mm	0.079 in	44	0.079 "	2 mm	Header	Push-Pull
GCT BF030-12A-B0-0360-0277-0600-LB	Unshrouded	Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.142 in	3.6 mm	All	Surface Mount	2	2 mm	0.079 in	12	0.079 "	2 mm	Header	Push-Pull
GCT BF030-16A-B0-0360-0277-0600-LB	Unshrouded	Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.142 in	3.6 mm	All	Surface Mount	2	2 mm	0.079 in	16	0.079 "	2 mm	Header	Push-Pull
GCT BF030-16A-B0-0600-0277-0600-LB	Unshrouded	Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.236 in	6 mm	All	Surface Mount	2	2 mm	0.079 in	16	0.079 "	2 mm	Header	Push-Pull
GCT BF030-10A-B1-0360-0277-0600-LB	Unshrouded	Board Guide Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.142 in	3.6 mm	All	Surface Mount	2	2 mm	0.079 in	10	0.079 "	2 mm	Header	Push-Pull
GCT BF030-08A-B1-0200-0277-0600-LB	Unshrouded	Board Guide Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.079 in	2 mm	All	Surface Mount	2	2 mm	0.079 in	8	0.079 "	2 mm	Header	Push-Pull
GCT BF030-08A-B0-0360-0277-0600-LB	Unshrouded	Pick and Place	Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.142 in	3.6 mm	All	Surface Mount	2	2 mm	0.079 in	8	0.079 "	2 mm	Header	Push-Pull

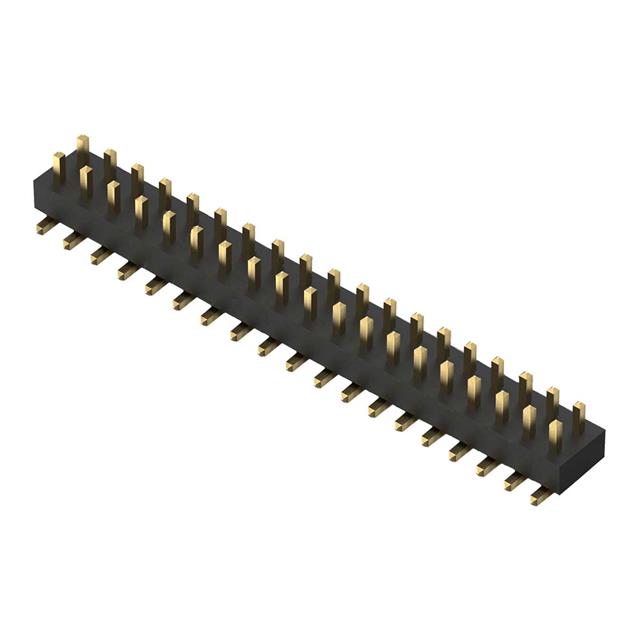

GCT BF030-38A-B0-0200-0277-0600-LD	Unshrouded		Flash	2 mm	0.079 in	-40 C	105 ░C	Copper Alloy	Liquid Crystal Polymer (LCP)	Black	Solder	2 A	Gold	Male Pin	250 VAC	UL94 V-0	Gold	Square	0.079 in	2 mm	All	Surface Mount	2	2 mm	0.079 in	38	0.079 "	2 mm	Header	Push-Pull	Flash
