OSTTE07 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

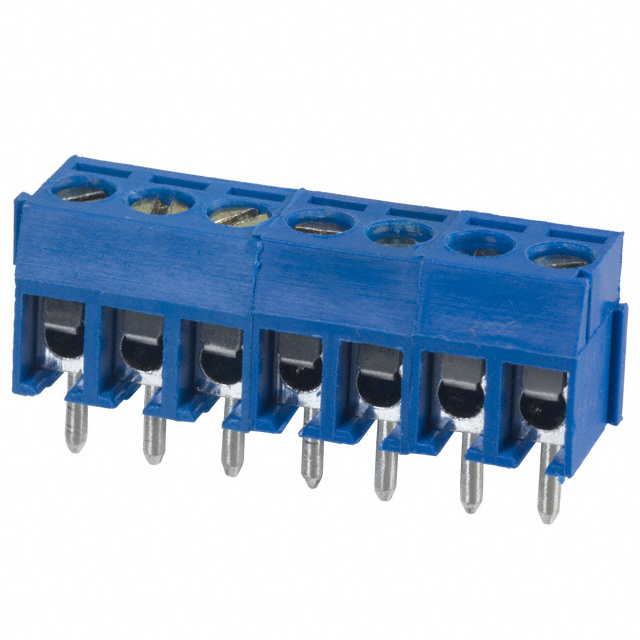

TERM BLK 7POS SIDE ENT 3.5MM PCB
| Part | Clamp Material - Plating [custom] | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Torque - Screw | Torque - Screw | Screw Material - Plating | Housing Material | Mating Orientation | Wire Termination | Mounting Type | Features | Color | Voltage | Pitch | Pitch | Number of Levels | Current | Wire Gauge [Max] | Wire Gauge [Min] | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Stainless Steel | M2 | -30 ░C | 105 ░C | Brass - Tin Plated | 1.7 Lb-In | 0.2 Nm | Steel - Zinc Plated | Thermoplastic | Horizontal with Board | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | Blue | 125 V | 3.5 mm | 0.138 " | 1 | 10 A | 26 AWG | 16 AWG | 7 |
 On Shore Technology Inc. | Stainless Steel | M2 | -40 C | 115 °C | Brass - Tin Plated | 1.7 Lb-In | 0.2 Nm | Steel - Zinc Plated | Horizontal with Board | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 125 V | 7 mm | 0.276 in | 1 | 10 A | 26 AWG | 16 AWG | 7 |
