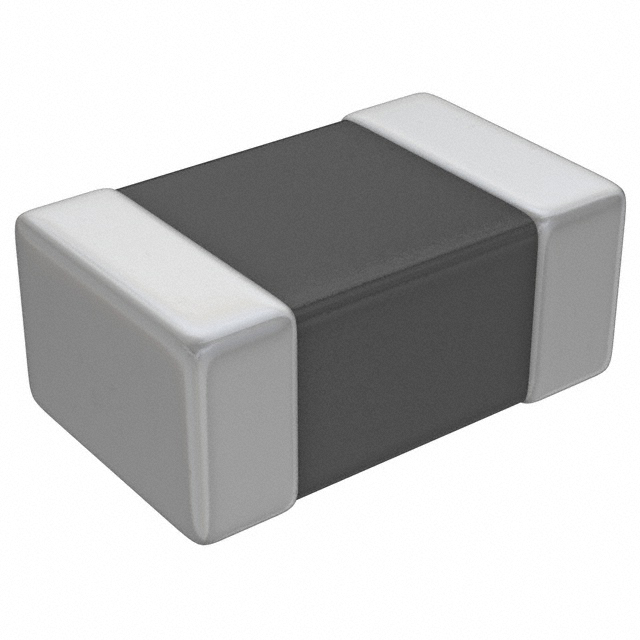

MPZ Series

Catalog

FERRITE BEADS MULTI-LAYER POWER 60OHM 25% 100MHZ 3.5A 0.02OHM DCR 0603 T/R

Part	DC Resistance (DCR) (Max) [Max]	Number of Lines	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Filter Type	Package / Case	Package / Case	Height (Max) [z]	Height (Max) [z]	Impedance @ Frequency	Current Rating (Max) [Max]	Size / Dimension [y]	DC Resistance (DCR) (Max)	Ratings
TDK Corporation MPZ1608S600ATAH0	20 mOhm	1	Surface Mount	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	Power Line	1608 Metric	0603	0.75 mm	0.03 in	60 Ohms	3.5 A
TDK Corporation MPZ1608Y221BTA00	100 mOhm	1	Surface Mount	-55 C	125 °C	0.031 in 0.032 in	1.6 mm	0.8 mm	0.063 "	Power Line	1608 Metric	0603	0.95 mm	0.037 in	220 Ohms	1.5 A	0.8 mm
TDK Corporation MPZ1608Y600BTA00	30 mOhm	1	Surface Mount	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	Power Line	1608 Metric	0603	0.95 mm	0.037 in	60 Ohms	2.3 A
TDK Corporation MPZ1608D101BTA00	150 mOhm	1	Surface Mount	-55 C	125 °C	0.031 in 0.032 in	1.6 mm	0.8 mm	0.063 "	Power Line	1608 Metric	0603	0.95 mm	0.037 in	100 Ohms	1 A	0.8 mm
TDK Corporation MPZ1608S101ATAH0	30 mOhm	1	Surface Mount	-55 C	125 °C	0.031 in	1.6 mm	0.8 mm	0.063 "	Power Line	1608 Metric	0603	0.75 mm	0.03 in	100 Ohms	3 A
TDK Corporation MPZ1608B471ATA00	150 mOhm	1	Surface Mount	-55 C	125 °C	0.031 in 0.032 in	1.6 mm	0.8 mm	0.063 "	Power Line	1608 Metric	0603	0.95 mm	0.037 in	470 Ohms	1 A	0.8 mm
TDK Corporation MPZ2012S221AT000		1	Surface Mount	-55 C	125 °C	0.049 "	2 mm		0.079 in	Power Line		0805	1.05 mm	0.041 in	220 Ohms	3 A	1.25 mm	40 mOhm
TDK Corporation MPZ2012S331ATD25	50 mOhm	1	Surface Mount	-55 C	125 °C	0.049 "	2 mm		0.079 in	Power Line		0805	1.05 mm	0.041 in	330 Ohms	2.5 A	1.25 mm		AEC-Q200
