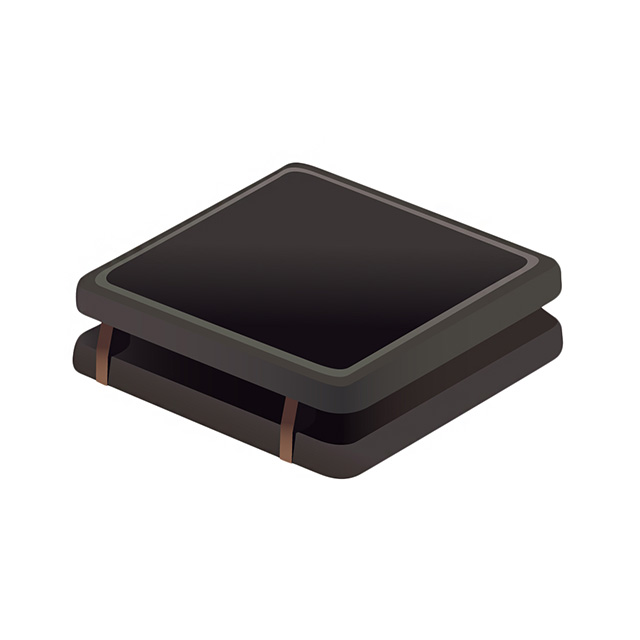

SRN3010TA Series

Catalog

INDUCTOR, SEMI-SHLD, 10UH, 0.8A, AUTO

Part	Mounting Type	Current Rating (Amps)	Ratings	Material - Core	Current - Saturation (Isat)	Q @ Freq	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	DC Resistance (DCR)	Inductance	Package / Case	Package / Case	Inductance Frequency - Test	Shielding	Type	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
Bourns Inc. SRN3010TA-100M	Surface Mount	800 mA	AEC-Q200	Ferrite	630 mA	1 MHz 22	40 MHz	125 °C	-40 C	3010	350 mOhm	10 µH	3030 Metric	1212	1 MHz	Shielded	Drum Core Wirewound	20 %	0.039 in	1 mm	3 mm	0.118 in	3 mm	0.118 "
Bourns Inc. SRN3010TA-150M	Surface Mount	700 mA	AEC-Q200	Ferrite	540 mA	1 MHz 22	35 MHz	125 °C	-40 C	3010	510 mOhm	15 µH	3030 Metric	1212	1 MHz	Shielded	Drum Core Wirewound	20 %	0.039 in	1 mm	3 mm	0.118 in	3 mm	0.118 "
Bourns Inc. SRN3010TA-1R5Y	Surface Mount	1.9 A	AEC-Q200	Ferrite		1 MHz 12	150 MHz	125 °C	-40 C	3010	70 mOhm	1.5 µH	3030 Metric	1212	1 MHz	Shielded	Drum Core Wirewound	30 %	0.039 in	1 mm	3 mm	0.118 in	3 mm	0.118 "
Bourns Inc. SRN3010TA-220M	Surface Mount	600 mA	AEC-Q200	Ferrite	430 mA	1 MHz 22	30 MHz	125 °C	-40 C	3010	750 mOhm	22 µH	3030 Metric	1212	1 MHz	Shielded	Drum Core Wirewound	20 %	0.039 in	1 mm	3 mm	0.118 in	3 mm	0.118 "
