Accu-Guard Series

Catalog

SURFACE MOUNT FUSES 0402 150MA FUSE

Part	DC Cold Resistance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage Rating - DC	Package / Case	Melting I²t	Approval Agency	Mounting Type	Current Rating (Amps)	Fuse Type	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Breaking Capacity @ Rated Voltage	Package / Case	Melting I˛t
KYOCERA AVX F0402G0R15FNTR	1.2 Ohms	0.023 "	1 mm	0.35 mm	0.58 mm	0.014 "	0.039 "	32 V	0402 (1005 Metric)	0.00002	cUL UL	Surface Mount	150 mA	Board Mount (Cartridge Style Excluded)	Fast Blow	-55 C	125 °C
KYOCERA AVX F0805B1R50FSTR								63 VDC	0805	0.01	cUL UL	Surface Mount	1.5 A	Board Mount (Cartridge Style Excluded)	Fast Blow	-55 C	125 °C	50 A
KYOCERA AVX F0603E3R00FSTR	0.03 Ohms	0.032 in	1.6 mm	0.63 mm	0.81 mm	0.025 in	0.063 "	32 V	0603	0.25	cUL UL	Surface Mount	3 A	Board Mount (Cartridge Style Excluded)	Fast Blow	-55 C	125 °C	50 A	1608 Metric

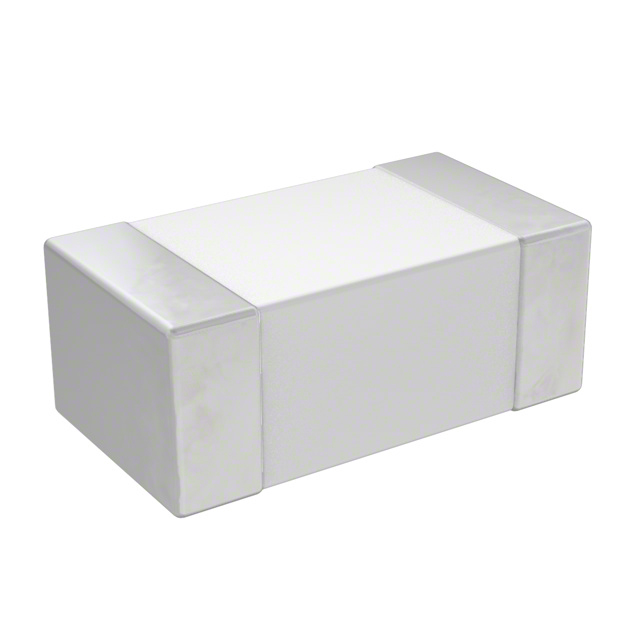

KYOCERA AVX F0402E2R00FSTR	0.04 Ohms	0.022 in	1 mm	0.4 mm	0.55 mm	0.016 in	0.039 "	32 V	0402 (1005 Metric)	0.06	cUL UL	Surface Mount	2 A	Board Mount (Cartridge Style Excluded)	Fast Blow	-55 C	125 °C	50 A		0.06
KYOCERA AVX F1206B0R37FWTR
KYOCERA AVX F0805B2R00FSTR								63 VDC	0805	0.03 I²t	cUL UL	Surface Mount	2 A	Board Mount (Cartridge Style Excluded)	Fast Blow	-55 C	125 °C	50 A
KYOCERA AVX F0603G0R10FNTR	2.4 Ohms	0.032 in	1.6 mm	0.61 mm	0.81 mm	0.024 in	0.063 "	32 V	0603	0.000007	cUL UL	Surface Mount	100 mA	Board Mount (Cartridge Style Excluded)	Fast Blow	-55 C	125 °C		1608 Metric	0.000007
KYOCERA AVX F0805B0R25FWTR	0.75 Ohms							63 VDC	0805	0.00003	cUL UL	Surface Mount	0.25 A	Board Mount (Cartridge Style Excluded)	Fast Blow	-55 C	125 °C	50 A		0.00003
