193001 Series
Manufacturer: HARTING
Beta
⌘K

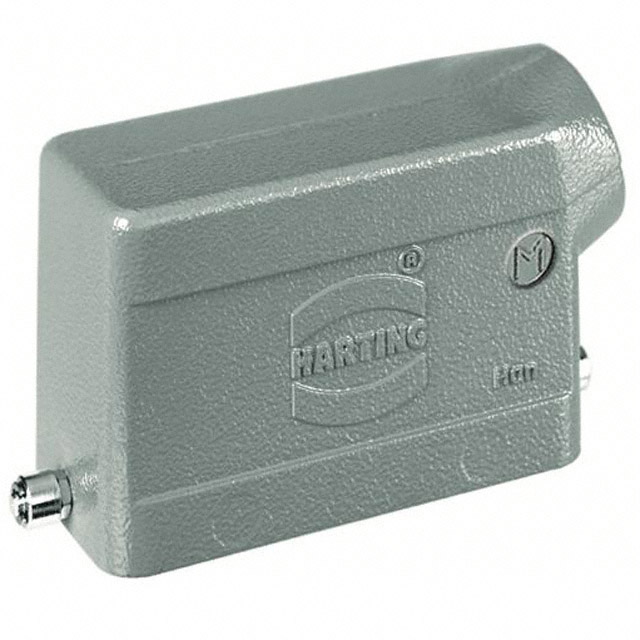

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER, 10B
| Part | Lock Location | Housing Color | Housing Finish | Thread Size | Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Style | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Locking Clip (1) on Base Bottom | Gray | Powder Coated | M25 | 10B | 43 mm | 72.6 mm | 57 mm | 2.858 in | 2.244 " | 1.693 " | Side Entry | Aluminum Die Cast | 125 °C | -40 C | Hood | IP65 - Dust Tight Water Resistant |
