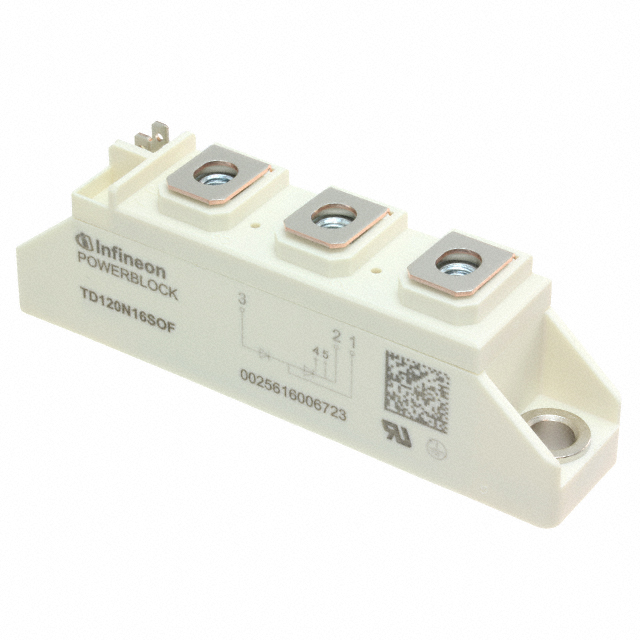

TD120N16 Series
Manufacturer: INFINEON
Beta
⌘K
1600 V, 119 A ECO BLOCK 20 MM THYRISTOR / DIODE PHASE CONTROL MODULES
| Part | Voltage - Off State | Number of SCRs, Diodes | Current - On State (It (RMS)) (Max) [Max] | Voltage - Gate Trigger (Vgt) (Max) [Max] | Mounting Type | Current - Hold (Ih) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Package / Case | Operating Temperature | Structure | Current - On State (It (AV)) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1.6 kV | 1 Diode | 190 A | 2.5 V | Chassis Mount | 250 mA | 100 mA | Module | 130 °C | Series Connection - SCR/Diode | 119 A |
