9602-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

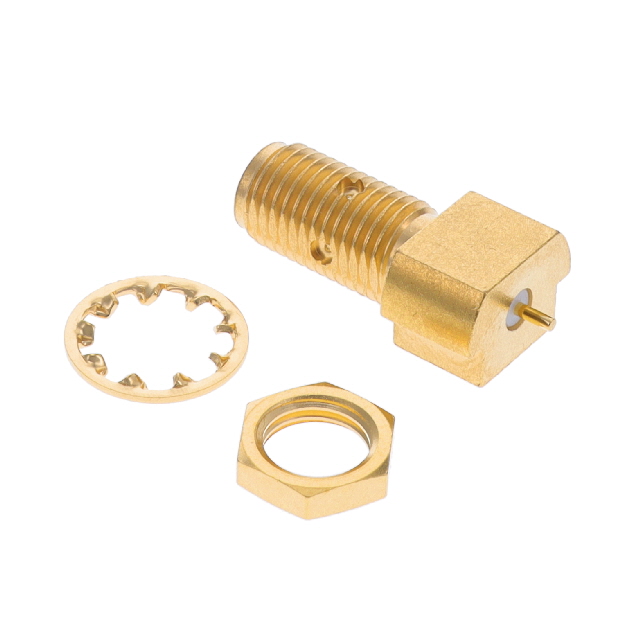

SMA F STR BHD
| Part | Includes | Mating Cycles | Dielectric Material | Body Material | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Termination | Connector Style | Impedance | Number of Ports | Housing Color | Connector Type | Mounting Type | Shield Termination | Mounting Feature | Center Contact Material | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 1 Connector 1 Lockwasher 1 Nut | 500 | Polytetrafluoroethylene (PTFE) | Brass | Gold | Gold | -65 ░C | 165 °C | Threaded | Solder | SMA | 50 Ohms | 1 | Gold | Female Socket Jack | Board Edge Cutout Panel Mount | Solder | Bulkhead - Front Side Nut | Beryllium Copper | 18 GHz |
