PCBEH Series
Manufacturer: Essentra Components
Beta
⌘K

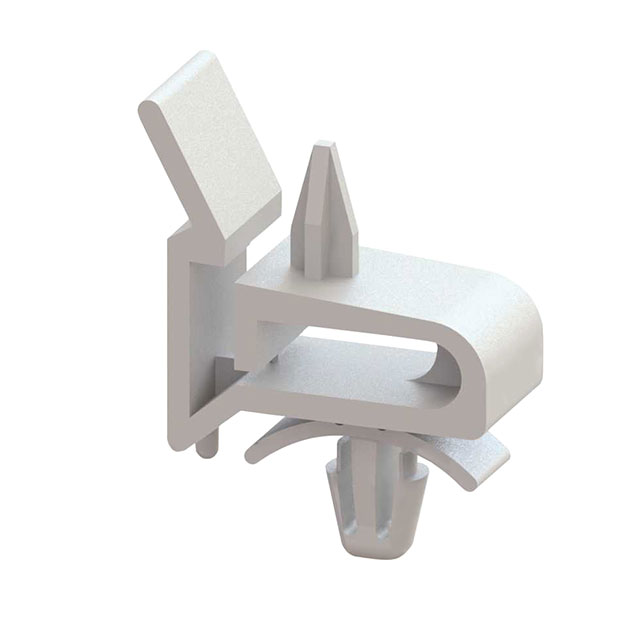

CB EDGE HOLDER PRINTED .66"
| Part | Between Board Height | Between Board Height | Holding Type | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Panel Thickness | Mounting Type | Support Panel Thickness | Support Panel Thickness | Support Panel Thickness | Length - Overall [x] | Length - Overall [x] | Material | Support Hole Diameter [diameter] | Support Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Panel Thickness [Max] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Min] | Mounting Panel Thickness [Max] | Mounting Hole Diameter | Mounting Hole Diameter | Mounting Hole Diameter | Between Board Height [z] | Between Board Height [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Essentra Components | 16.8 mm | 0.661 " | Edge Holding | 0.062 " | 0.0625 " | 1.57 mm | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 32.8 mm | 1.291 in | Nylon | 3.99 mm | 0.157 " | 0.1875 in | 0.187 in | 4.75 mm | |||||||||
 Essentra Components | Edge Holding | Snap Lock | 1.57 mm | 0.062 in | 0.0625 in | 25.8 mm | 1.016 in | Nylon | 3.99 mm | 0.157 " | 0.071 " | 0.047 in | 1.2 mm | 1.8 mm | Square | 5.5 mm | 0.217 in | 0.394 in | 10 mm |
