09390240 Series
Manufacturer: HARTING
Beta
⌘K
CONN HOOD BOTTOM ENTRY
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Style | Lock Location | Connector Type | Thread Size | Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Ingress Protection | Housing Material | Housing Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | 5.236 " | 71 mm | 133 mm | 85 mm | 2.795 " | 3.346 " | Bottom Entry | Screw Locks on Hood | Hood | ||||||||
HARTING | 5.236 " | 71 mm | 133 mm | 85 mm | 2.795 " | 3.346 " | Top Entry | Screw Locks on Hood | Hood | PG29 | |||||||
HARTING | 5.236 " | 71 mm | 133 mm | 85 mm | 2.795 " | 3.346 " | Side Entry | Screw Locks on Hood | Hood | PG21 | |||||||
HARTING | 5.236 " | 71 mm | 133 mm | 85 mm | 2.795 " | 3.346 " | Top Entry | Screw Locks on Hood | Hood | PG36 | |||||||

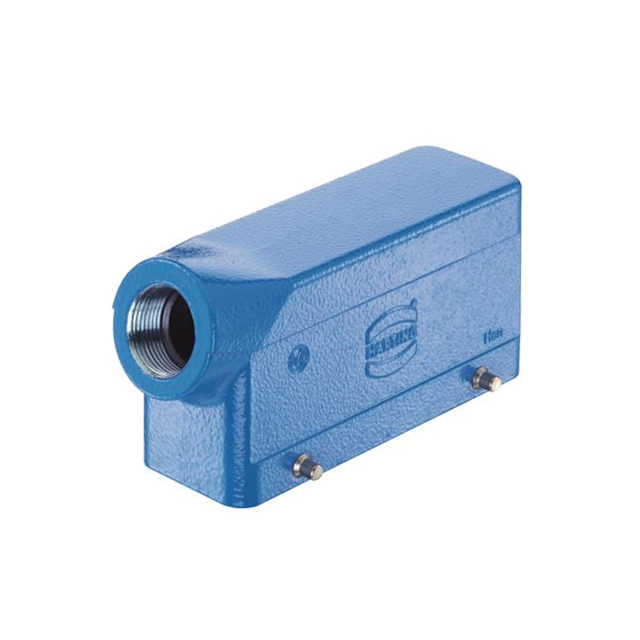

 HARTING | 5.236 " | 71 mm | 133 mm | 85 mm | 2.795 " | 3.346 " | Side Entry | Screw Locks on Hood | Hood | PG29 | |||||||

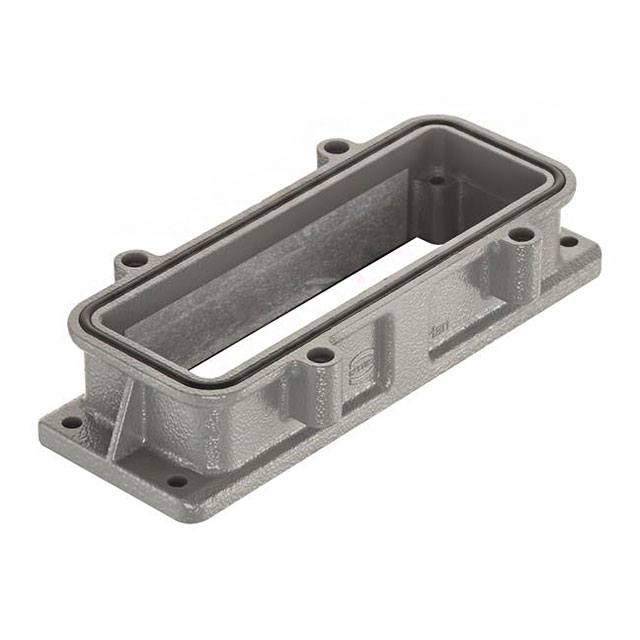

 HARTING | 5.512 " | 65.6 mm | 140 mm | 28.2 mm | 2.583 in | 1.11 in | Bottom Entry | Screw Locks on Hood | Base - Panel Mount | 24 B | 125 °C | -40 C | Gray | IP66 IP68 IP69K | Aluminum Die Cast | Powder Coated |
