165566 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

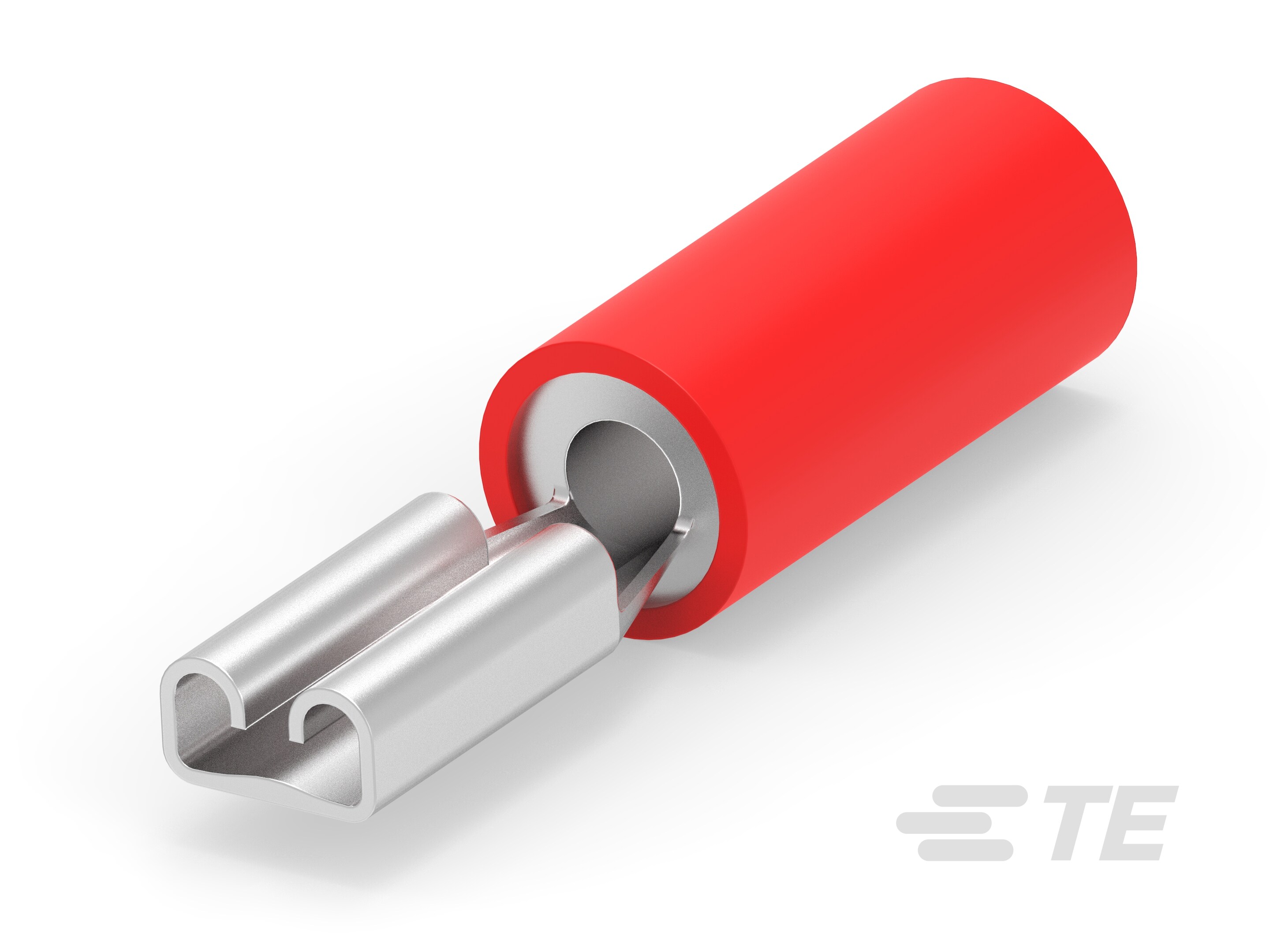

110 PIDG FASTON REC
| Part | Insulation Diameter [diameter] | Insulation Diameter [diameter] | Terminal Type | Color | Insulation | Contact Finish | Length - Overall [x] | Length - Overall [x] | Mounting Type | Termination | Gender | Contact Material | Tab Width | Tab Width | Tab Thickness | Tab Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Tab Length [x] | Tab Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.56 mm | 0.14 in | Standard | Red | Non-Mating End Insulated | Tin | 0.78 in | 19.81 mm | Free Hanging (In-Line) | Crimp | Female | Brass | 0.11 " | 2.79 mm | 0.81 mm | 0.032 in | 16 AWG | 22 AWG | 6.3 mm | 0.248 " |
