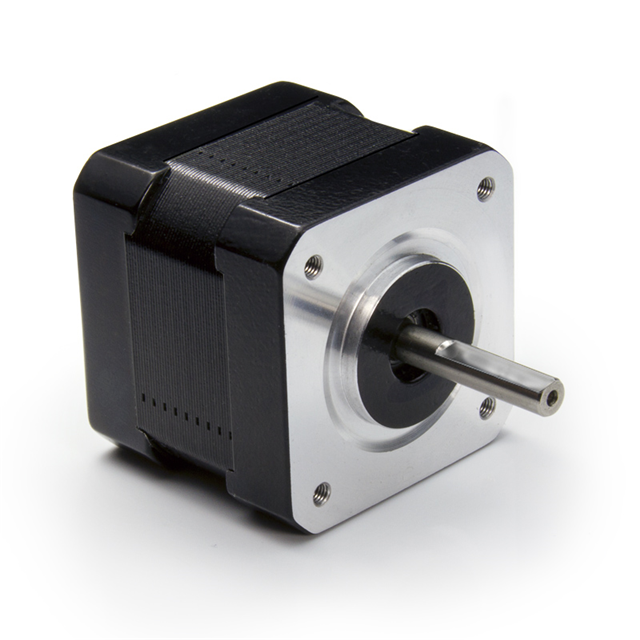

WO-4209M Series
Manufacturer: Lin Engineering
Beta
⌘K
STEPPER MOTOR
| Part | Rotor Inertia | Termination Style | Diameter - Shaft [diameter] | Diameter - Shaft [diameter] | Coil Type | Length - Shaft and Bearing [x] | Length - Shaft and Bearing [x] | Coil Resistance | Mounting Hole Spacing [custom] | Mounting Hole Spacing [custom] | Current Rating (Amps) | Features | Steps per Revolution | Step Angle | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Rated | Torque - Holding (oz-in / mNm) | Torque - Holding (oz-in / mNm) | NEMA Frame Size | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lin Engineering | 1.3 gcm² | Wire Leads | 0.197 in | 5 mm | Bipolar | 24 mm | 0.945 " | 6.1 Ohms | 31 mm | 1.22 in | 0.84 A | Round Shaft | 400 | 0.9 ° | 42.4 mm | 1.669 in | 42.4 mm | 1.669 " | 24 VDC | 360 mNm | 51 oz-in | 17 | -20 ░C | 50 °C |
Lin Engineering | 1.3 gcm² | Wire Leads | 0.197 in | 5 mm | Bipolar | 24 mm | 0.945 " | 1.5 Ohms | 31 mm | 1.22 in | 1.7 A | Round Shaft | 400 | 0.9 ° | 42.4 mm | 1.669 in | 42.4 mm | 1.669 " | 24 VDC | 360 mNm | 51 oz-in | 17 | -20 ░C | 50 °C |
