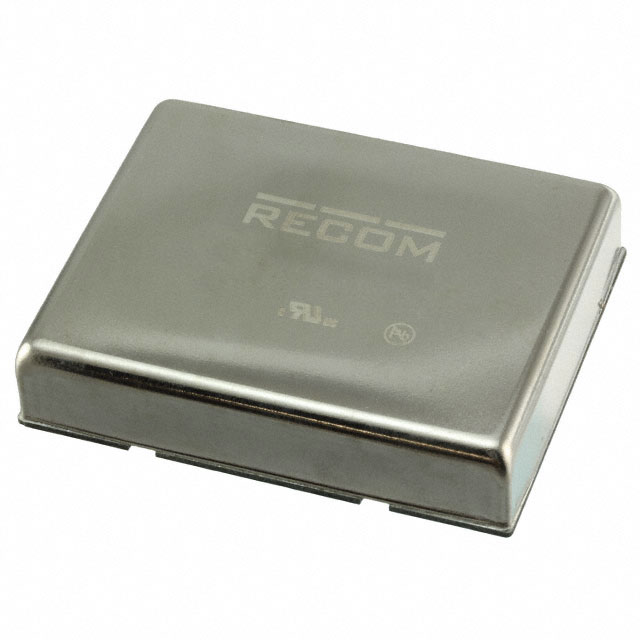

REC30-S_DZ Series

Isolated DC/DC Converters - Through Hole 30W 9-36Vin 5.1Vout 6000mA

Manufacturer: Recom Power

Catalog

Isolated DC/DC Converters - Through Hole 30W 9-36Vin 5.1Vout 6000mA

Catalog

Isolated DC/DC Converters - Through Hole 30W 9-36Vin 5.1Vout 6000mA

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Voltage - Output 2	Voltage - Input (Min) [Min]	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Number of Outputs	Voltage - Input (Max) [Max]	Efficiency	Applications	Package / Case	Mounting Type	Power (Watts)	Current - Output (Max)	Type	Current - Output (Max) [Max]

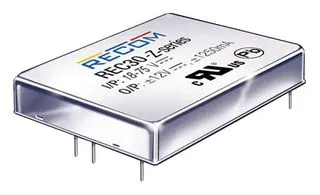

Recom Power REC30-2415DZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV	-15 V	9 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	15 V	2	36 V	89 %	ITE (Commercial)	8-DIP Module 7 Leads	Through Hole	30 Watts	1 A	Isolated Module

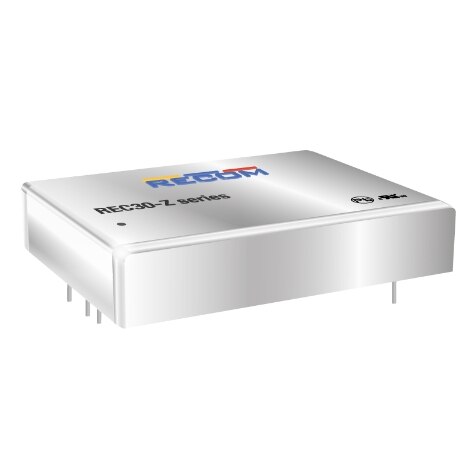

Recom Power REC30-4812SZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV		18 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	12 V	1	75 V	89 %	ITE (Commercial)	8-DIP Module 6 Leads	Through Hole	30 Watts		Isolated Module	2.5 A
Recom Power REC30-4815SZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV		18 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	15 V	1	75 V		ITE (Commercial)	8-DIP Module 6 Leads	Through Hole	30 Watts		Isolated Module	2 A
Recom Power REC30-4812DZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV	-12 V	18 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	12 V	2	75 V	88 %	ITE (Commercial)	8-DIP Module 7 Leads	Through Hole	30 Watts	1.25 A	Isolated Module
Recom Power REC30-2415SZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV		9 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	15 V	1	36 V	89 %	ITE (Commercial)	8-DIP Module 6 Leads	Through Hole	30 Watts		Isolated Module	2 A
Recom Power REC30-245.1SZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV		9 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	5.1 V	1	36 V	87.5 %	ITE (Commercial)	8-DIP Module 6 Leads	Through Hole	30 Watts		Isolated Module	6 A
Recom Power REC30-2412SZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV		9 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	12 V	1	36 V	88.5 %	ITE (Commercial)	8-DIP Module 6 Leads	Through Hole	30 Watts		Isolated Module	2.5 A
Recom Power REC30-2412DZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV	-12 V	9 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	12 V	2	36 V	88.5 %	ITE (Commercial)	8-DIP Module 7 Leads	Through Hole	30 Watts	1.25 A	Isolated Module
Recom Power REC30-243.4SZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV		9 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	3.4 V	1	36 V	86.5 %	ITE (Commercial)	8-DIP Module 6 Leads	Through Hole	30 Watts		Isolated Module	6 A
Recom Power REC30-485.1SZ	2 in	0.4 "	10.2 mm	50.8 mm	1.6 in	40.6 mm	1.6 kV		18 V	Active High Enable	85 °C	-40 C	OVP Remote On/Off SCP UVLO	5.1 V	1	75 V	87.5 %	ITE (Commercial)	8-DIP Module 6 Leads	Through Hole	30 Watts		Isolated Module	6 A
