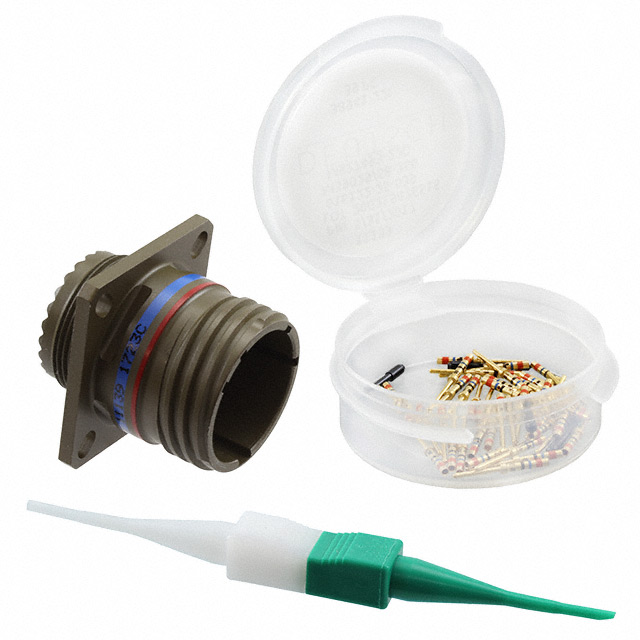

D38999/20WD Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
CONN CIRCULAR PIN 37 POS CRIMP ST FLANGE MOUNT 37 TERMINAL 1 PORT
| Part | Orientation | Number of Positions | Mounting Type | Mounting Feature | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shielding | Ingress Protection | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Applications | Qualification | Fastening Type | Current Rating (Amps) | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Termination | Connector Type | Shell Material | Insert Material | Features | Color | Shell Size, MIL | Grade | Shell Finish | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | N (Normal) | 37 | Panel Mount | Flange | 50 µin | 1.27 µm | Shielded | Environment Resistant | 35 | 15 | Aviation Communication Systems Industrial Military | MIL-DTL-38999 Series III | Threaded | 5 A | Metal | -65 ░C | 175 °C | Gold | Crimp | Receptacle Male Pins | Aluminum | Thermoplastic | Self Locking | Olive Drab | D | Military | Olive Drab Cadmium | Copper Alloy |
