CCM03 Series

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

CONN SIM/SAM CARD PUSH-PULL R/A

Part	Card Type	Mounting Type	Number of Positions	Mounting Feature	Contact Finish	Height Above Board	Height Above Board	Insertion, Removal Method	Height Above Board [z]	Height Above Board [z]	Connector Type	Features	Number of Positions

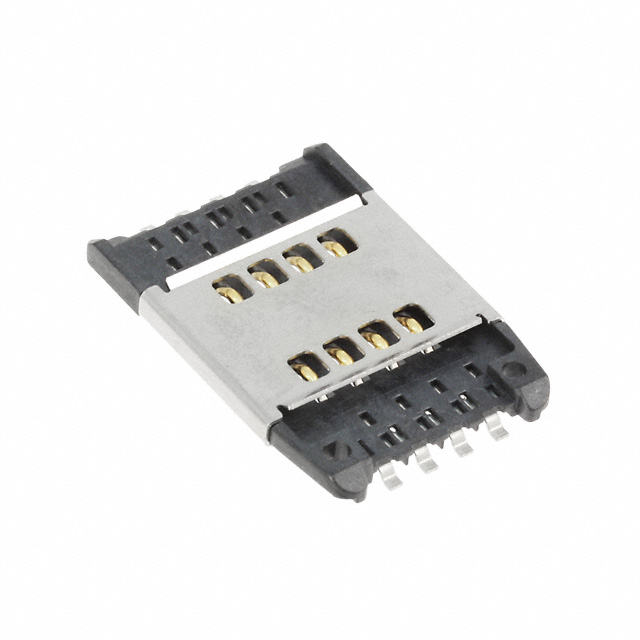

Littelfuse/Commercial Vehicle Products CCM03-3504LFT R122	SAM Card SIM	Surface Mount Right Angle	8	Normal Standard - Top	Gold	0.118 in	3 mm	Pull Out Push In
Littelfuse/Commercial Vehicle Products CCM03-3009LFT R102	SAM Card SIM	Surface Mount Right Angle	6	Normal Standard - Top	Gold			Hinged Lid	0.106 in	2.7 mm	Connector and Ejector

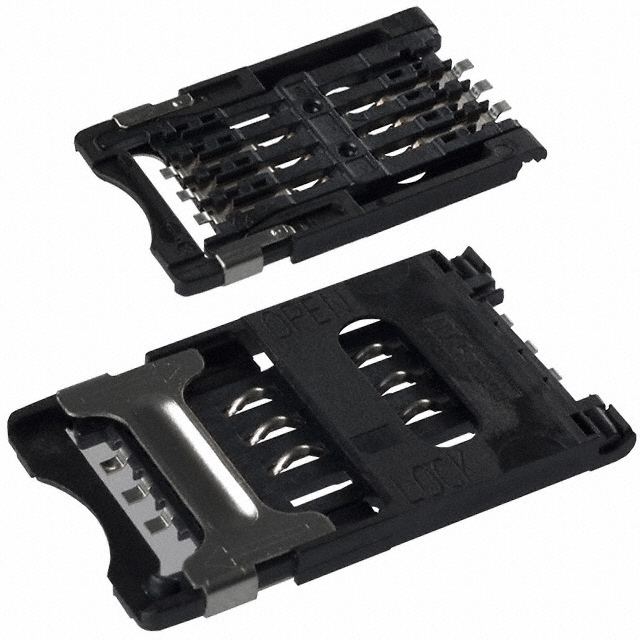

Littelfuse/Commercial Vehicle Products CCM03-3001LFT R102	SAM Card SIM	Surface Mount Right Angle	6	Normal Standard - Top	Gold			Hinged Lid	0.106 in	2.7 mm	Connector and Ejector

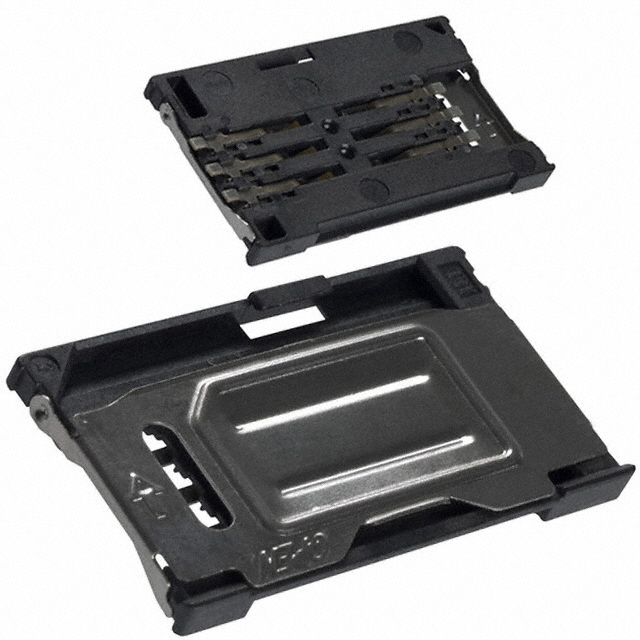

Littelfuse/Commercial Vehicle Products CCM03-3517LFT R132	SAM Card SIM	Surface Mount Right Angle	6	Normal Standard - Top	Gold	0.098 in	2.5 mm	Hinged Lid			Connector and Ejector
Littelfuse/Commercial Vehicle Products CCM03-3009	SAM Card SIM	Surface Mount Right Angle	6	Normal Standard - Top	Gold			Hinged Lid	0.106 in	2.7 mm	Connector and Ejector

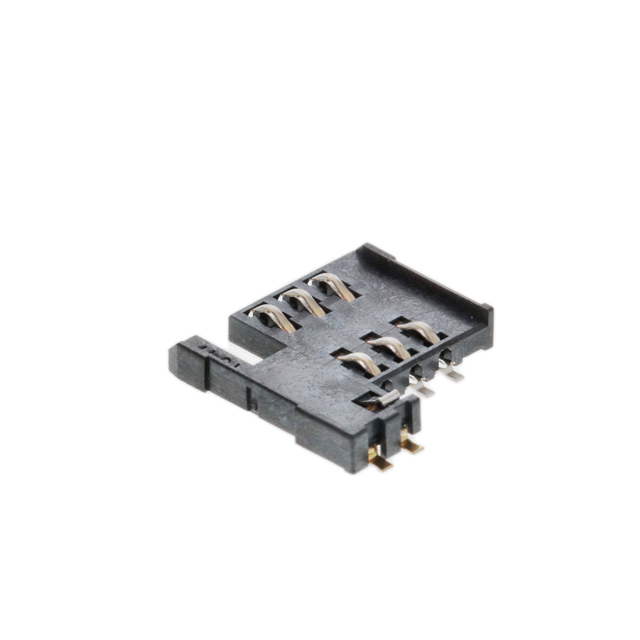

Littelfuse/Commercial Vehicle Products CCM033764LFTR102	SAM Card SIM	Surface Mount Right Angle		Normal Standard - Top	Gold			Pull Out Push In	0.114 "	2.9 mm		Switch	8 (6 + 2)

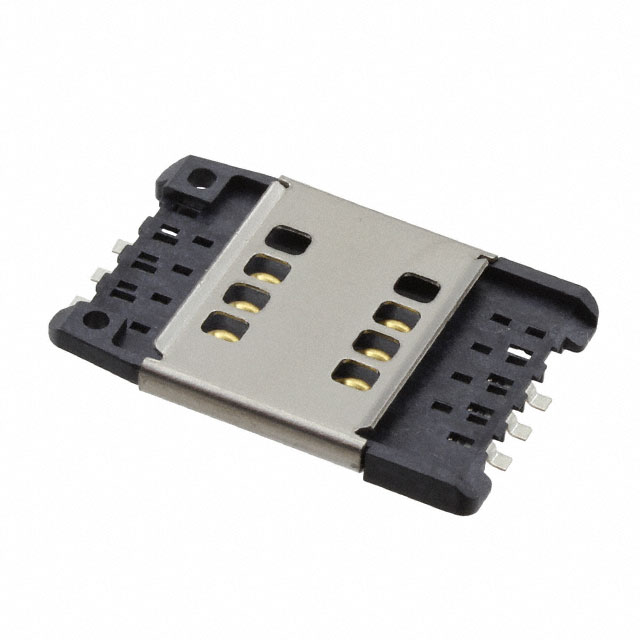

Littelfuse/Commercial Vehicle Products CCM033505LFTR122	SAM Card SIM	Surface Mount Right Angle	6	Normal Standard - Top	Gold	0.112 in	2.85 mm	Pull Out Push In

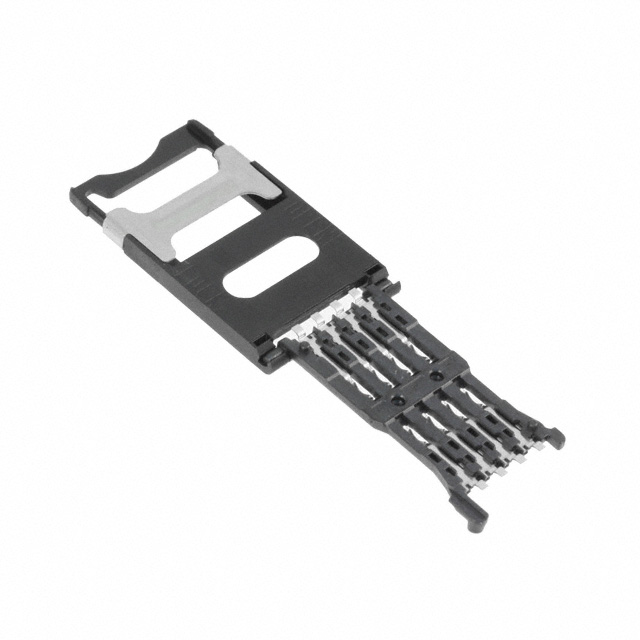

Littelfuse/Commercial Vehicle Products CCM03-3004LFT R102	SAM Card SIM	Surface Mount Right Angle	8	Normal Standard - Top	Gold			Hinged Lid	0.106 in	2.7 mm	Connector and Ejector	Board Guide

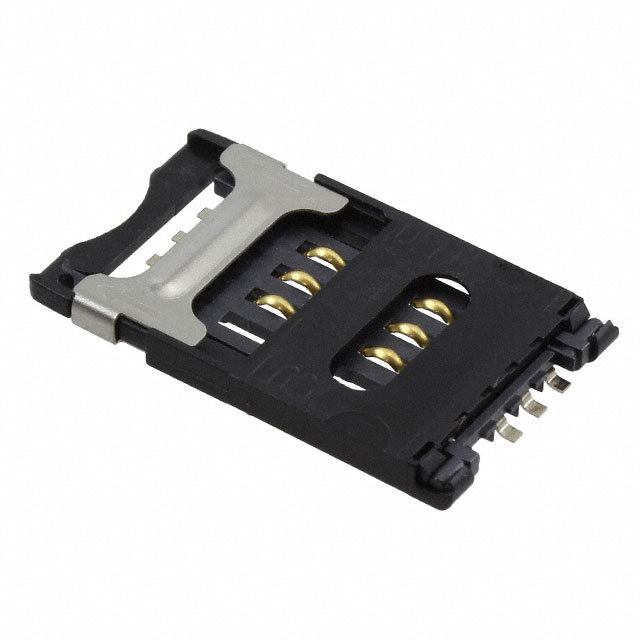

Littelfuse/Commercial Vehicle Products CCM03-3010LFT R102	SAM Card SIM	Surface Mount Right Angle	6	Normal Standard - Top	Gold			Hinged Lid			Connector and Ejector	Board Guide
Littelfuse/Commercial Vehicle Products CCM03-3013LFT R102	SAM Card SIM	Surface Mount Right Angle		Normal Standard - Top	Gold			Hinged Lid	0.106 in	2.7 mm	Connector and Ejector	Switch	8 (6 + 2)
