RQB40W12 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC DC CONVERTER 48V 40W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Approval Agency | Current - Output (Max) [Max] | Supplier Device Package | Voltage - Isolation | Efficiency | Package / Case | Voltage - Input (Max) [Max] | Applications | Voltage - Output 1 | Features | Standard Number | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Voltage - Input (Min) [Min] | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

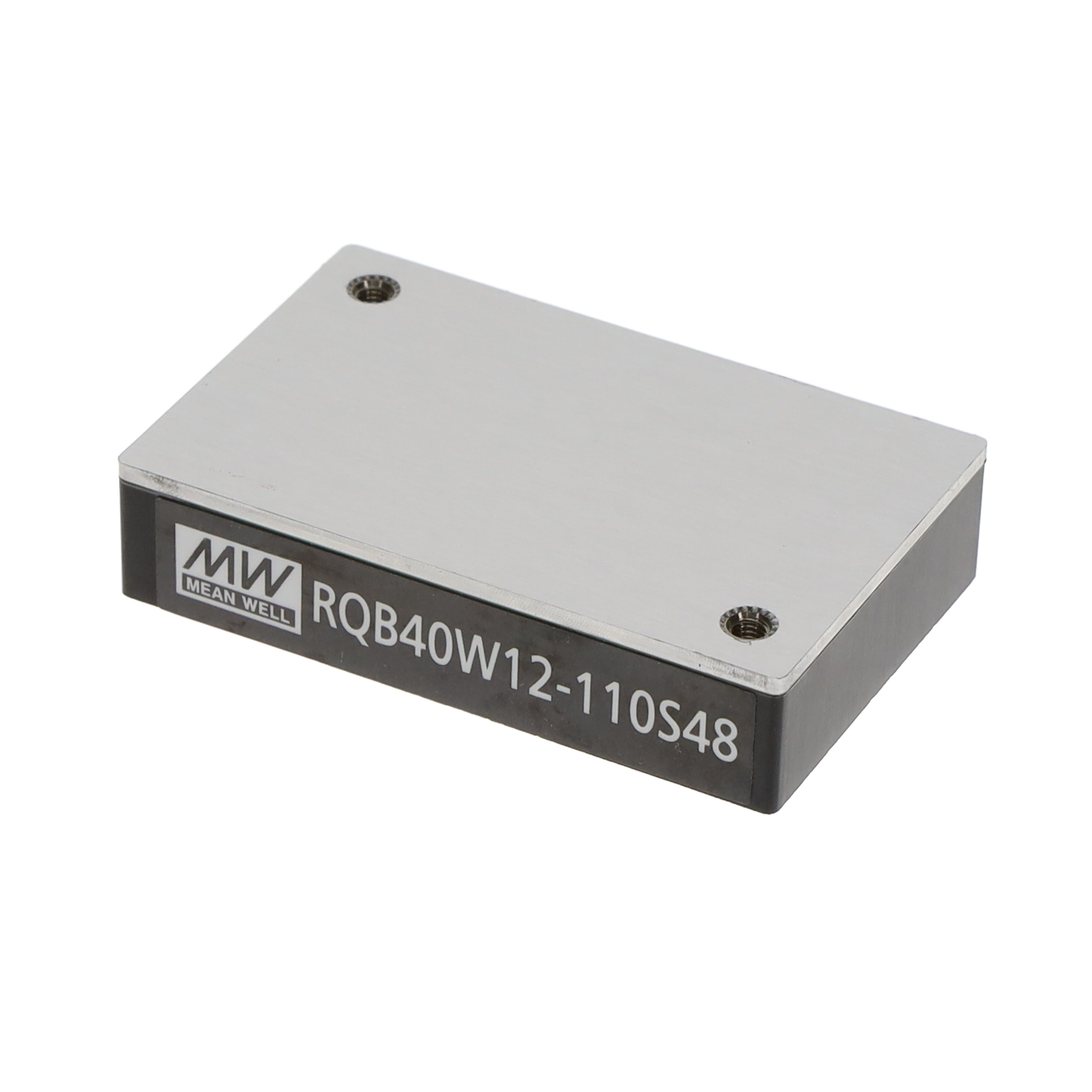

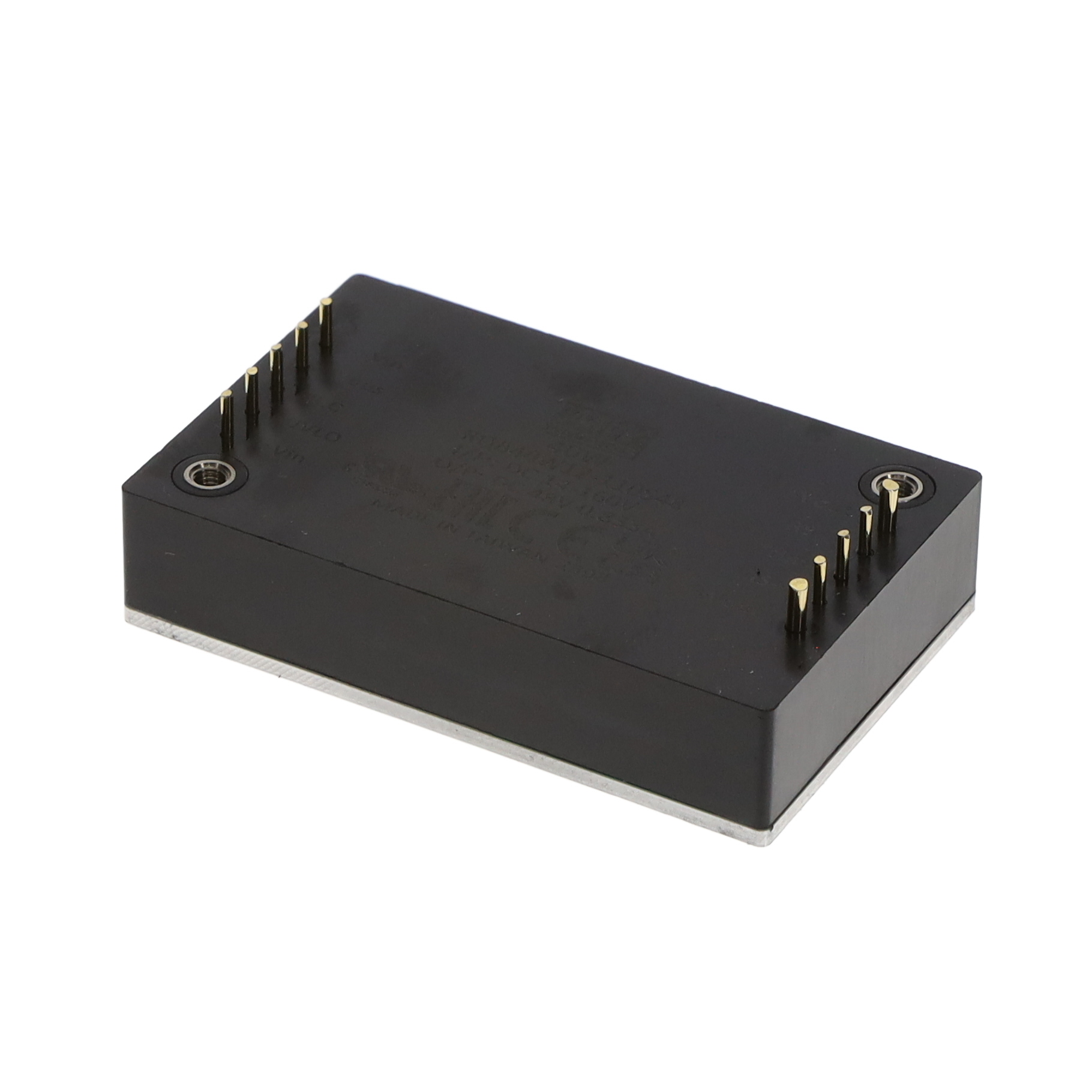

 MEAN WELL USA Inc. | 90 °C | -40 °C | 40 W | CB CE cURus EAC UKCA | 833 mA | Quarter Brick | 3000 V | 89 % | Quarter Brick | 160 V | ITE (Commercial) | 48 V | Adjustable Output Remote On/Off | 62368-1 | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | 1 | 14 V | Through Hole | Isolated Module |

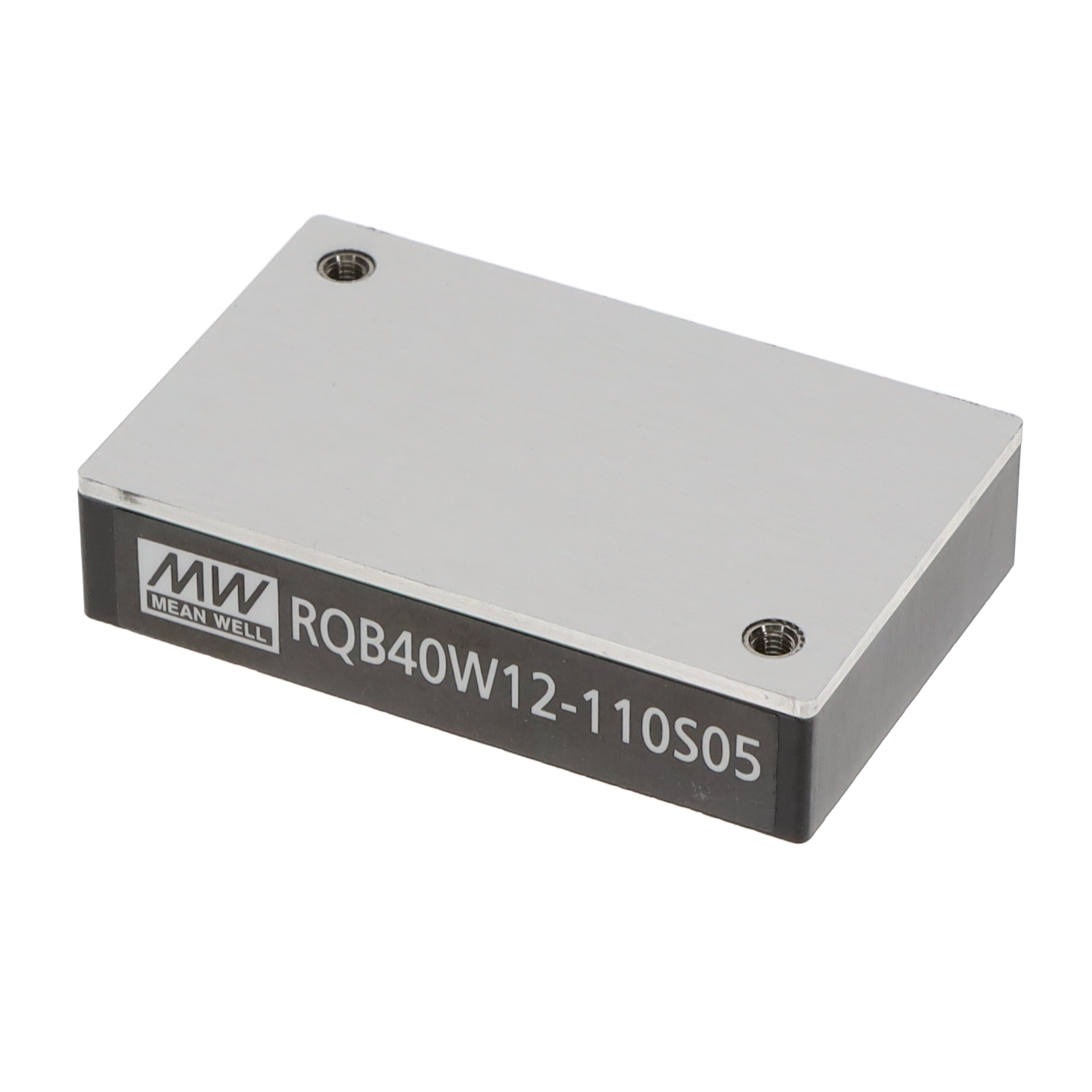

 MEAN WELL USA Inc. | 90 °C | -40 °C | 40 W | CB CE cURus EAC UKCA | 8 A | Quarter Brick | 3000 V | 88 % | Quarter Brick | 160 V | ITE (Commercial) | 5 V | Adjustable Output Remote On/Off | 62368-1 | 57.9 mm | 1.45 in | 0.5 in | 2.28 " | 12.7 mm | 36.8 mm | 1 | 14 V | Through Hole | Isolated Module |
