51K507 Series
Manufacturer: Rosenberger
Beta
⌘K
BNC BULKHEAD JACK
| Part | Center Contact Plating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Body Finish | Mating Cycles | Dielectric Material | Body Material | Frequency - Max [Max] | Center Contact Material | Shield Termination | Mounting Type | Connector Type | Contact Termination | Impedance | Mounting Feature | Connector Style | Cable Group | Fastening Type | Number of Ports | Housing Color | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

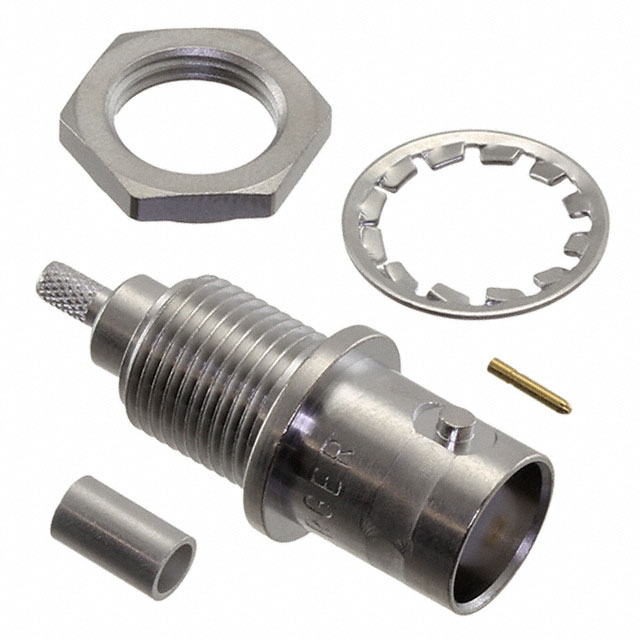

 Rosenberger | Gold | 155 C | -55 C | 400 V | White Bronze | 500 | Polytetrafluoroethylene (PTFE) | Brass | 10 GHz | Beryllium Copper | Crimp | Panel Mount | Female Socket Jack | Crimp | 50 Ohms | Bulkhead - Rear Side Nut | BNC | RG-316 | Bayonet Lock | 1 | Silver | |

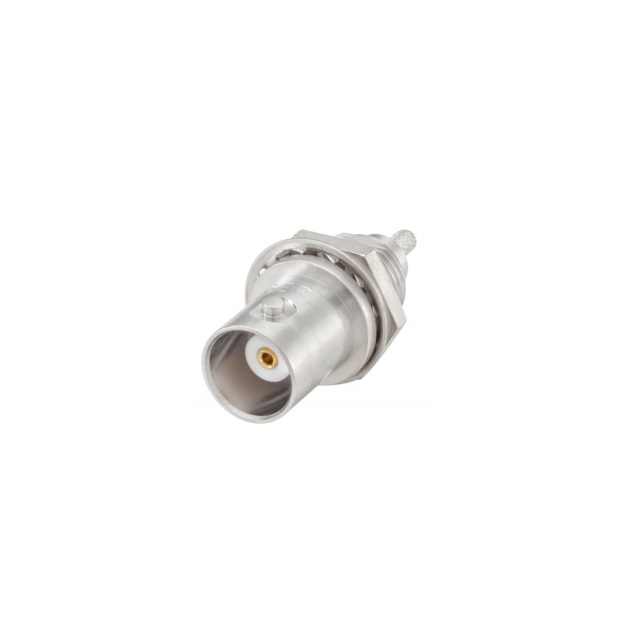

 Rosenberger | Gold | 155 C | -55 C | 400 V | White Bronze | 500 | Polytetrafluoroethylene (PTFE) | Brass | 10 GHz | Beryllium Copper | Crimp | Panel Mount | Female Socket Jack | Crimp | 50 Ohms | Bulkhead - Rear Side Nut | BNC | 188A 316 RG-174A | Bayonet Lock | 1 | Silver | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut |
